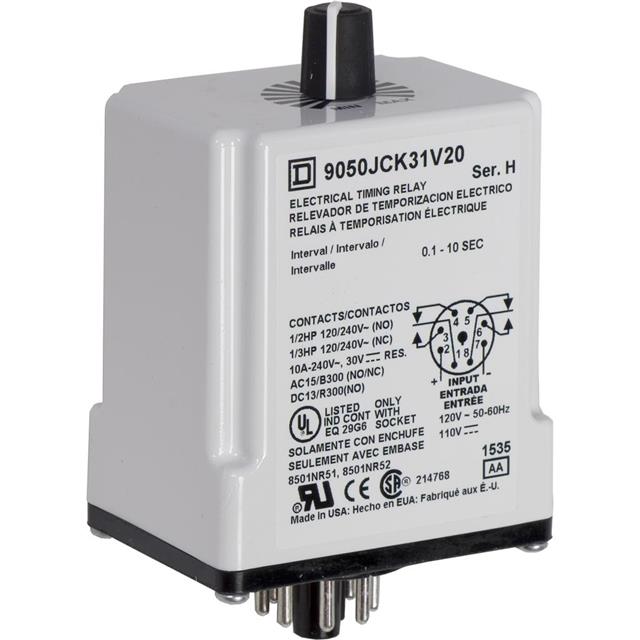

Specification	9050JCK31V20

Circuit	DPDT (2 Form C)
Contact Rating (Current)	10 A
Delay Time (Maximum)	10 Sec
Delay Time (Minimum)	0.1 Sec
Function	Interval
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

9050J Series

Part	Timing Adjustment Method	Delay Time (Maximum)	Delay Time (Minimum)	Voltage - Supply	Relay Type	Circuit	Contact Rating (Current)	Mounting Type	Timing Initiate Method	Function	Termination Style	Voltage - Supply (Option 1)	Voltage - Supply (Option 2)
SCHNEIDER ELECTRIC 9050JCK24V20	Hand Dial	2 Min	1.2 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Off-Delay	Plug In
SCHNEIDER ELECTRIC 9050JCK26V14	Hand Dial	10 Min	6 Sec	24 VDC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Off-Delay	Plug In	24 VAC	24 DC
SCHNEIDER ELECTRIC 9050JCK33V20	Hand Dial	60 Sec	0.6 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Interval	Plug In
SCHNEIDER ELECTRIC 9050JCK14V14	Hand Dial	2 Min	1.2 Sec	24 VDC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	On-Delay	Plug In	24 VAC	24 DC
SCHNEIDER ELECTRIC 9050JCK26PTV20	Hand Dial	10 Min	6 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage Trigger Signal	Off-Delay	Plug In
SCHNEIDER ELECTRIC 9050JCK16V20	Hand Dial	10 Min	6 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	On-Delay	Plug In
SCHNEIDER ELECTRIC 9050JCK53V20	Hand Dial	60 Sec	0.6 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Repeat Cycle	Plug In
SCHNEIDER ELECTRIC 9050JCK23V20	Hand Dial	60 Sec	0.6 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Off-Delay	Plug In
SCHNEIDER ELECTRIC 9050JCK55V20	Hand Dial	3 Min	1.8 Sec	120 VAC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	Repeat Cycle	Plug In
SCHNEIDER ELECTRIC 9050JCK11V14	Hand Dial	10 Sec	0.1 Sec	24 VDC	Mechanical Relay	DPDT (2 Form C)	10 A	Socketable	Input Voltage	On-Delay	Plug In	24 VAC	24 DC
