Description
General part information

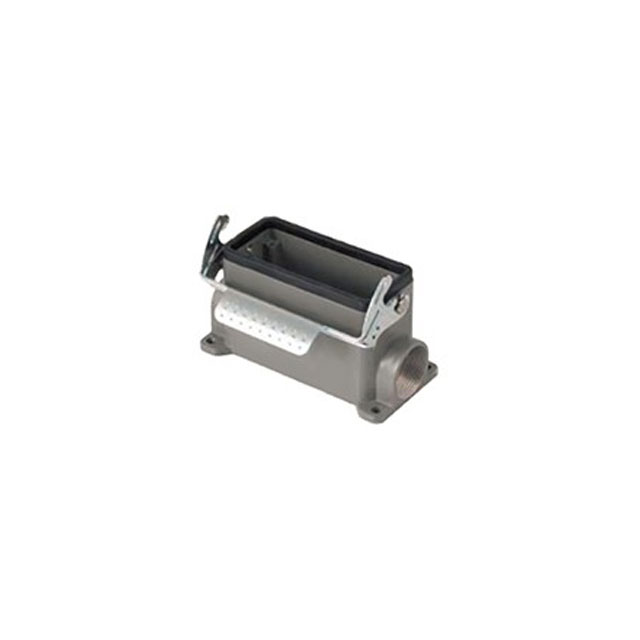

0936014592
CONN BASE SIDE ENTRY SZ48B PG29
Technical Specifications
Parameters and characteristics for this part
| Specification | 0936014592 |
|---|---|
| Connector Type | Base - Box Mount |
| Features | Feed Through |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | 48B |
| Size / Dimension Height | 3.799 in |
| Size / Dimension Length | 5.551 in |
| Size / Dimension Width | 4.724 in |
| Style | Side Entry |
| Thread Size | PG29 |
