Description
General part information
CNS471A6

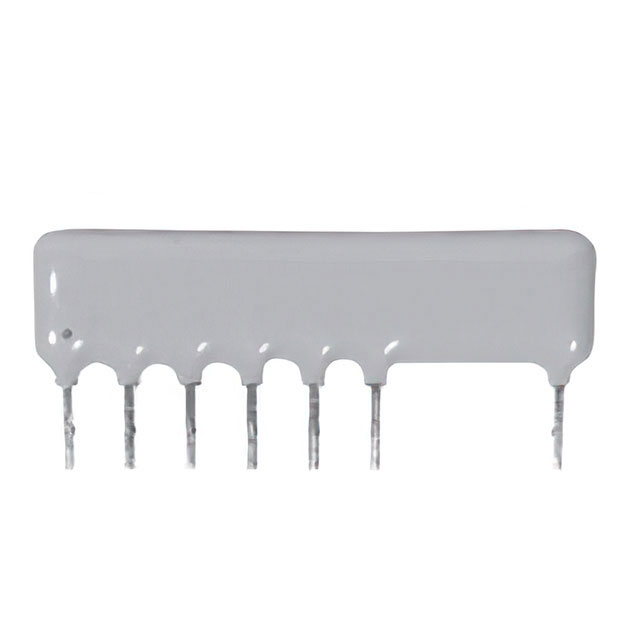

The CNS471A6 is a 9MΩ 100mW 7-pin 6-element single-in-line through-hole thin film Resistor Network with alumina substrate and fluidized epoxy coating. By using this integrated thin film network instead of discrete resistor sets designers gain several advantages of smaller size, better overall tracking and greater reliability.
Technical Specifications
Parameters and characteristics for this part
| Specification | CNS471A6 |
|---|---|
| Applications | Voltage Divider (TCR Matched) |
| Circuit Type | Decade Resistor |
| Height - Seated (Max) | 0.261 in |
| Mounting Type | Through Hole |
| Number of Pins | 7 |
| Number of Resistors | 6 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Package Leads | 7 Leads |
| Package Name | 9-SIP |
| Power Per Element | 100 mW |
| Resistance | 90 kOhm, 900 Ohm, 9 MOhm, 9 kOhm, 100 Ohms, 900 kOhm |
| Resistor Matching Ratio (Tolerance) | 0.05 % |
| Resistor Ratio Drift | 2.5 ppm/°C |
| Size / Dimension Length | 0.93 in |
| Size / Dimension Width | 0.1 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
