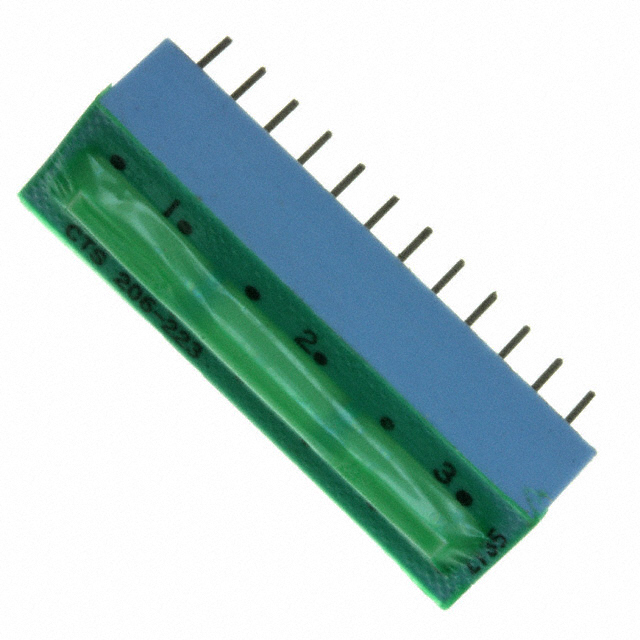

206-223ST
ObsoleteCTS Electrocomponents
SWITCH SLIDE DIP DPDT 0.05A 24V
206-223ST
ObsoleteCTS Electrocomponents
SWITCH SLIDE DIP DPDT 0.05A 24V
Description
General part information
206-223ST
Dip Switch DPDT 3 Position Through Hole Slide (Standard) Actuator 50mA 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 206-223ST |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Body Material | Plastic |
| Circuit | DPDT |
| Contact Finish | Gold |
| Current Rating | 50 mA |
| Electrical Life (Cycles) | 10000 Cycles |
| Features | Epoxy Sealed Terminals, Tape Seal |
| Height Above Board | 0.334 in |
| Mounting Type | Through Hole |
| Number of Positions | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | PC Pin |
| Voltage Rating | 24 V |
| Washable | Yes |
