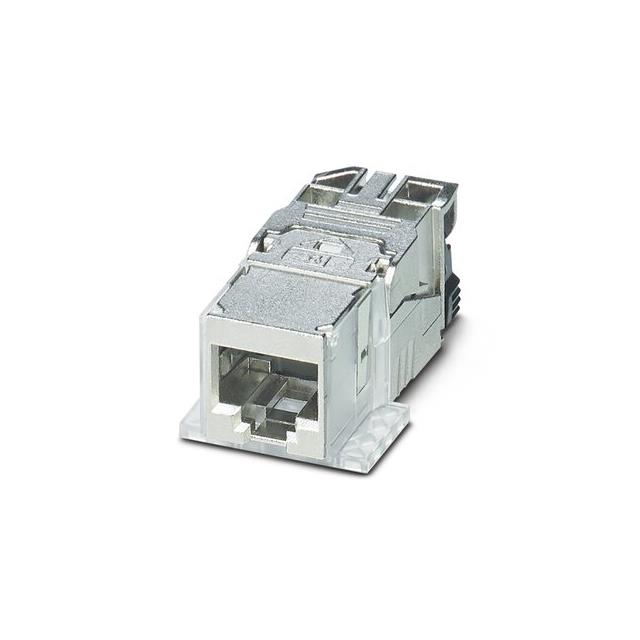

1418984
ActivePhoenix Contact
RJ45 CONNECTOR, CAT6A, JACK, 8P8C, 1PORT ROHS COMPLIANT: YES
1418984
ActivePhoenix Contact
RJ45 CONNECTOR, CAT6A, JACK, 8P8C, 1PORT ROHS COMPLIANT: YES
Description
General part information
1418984
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat6a
Technical Specifications
Parameters and characteristics for this part
| Specification | 1418984 |
|---|---|
| Connector Type | Jack, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Material | Copper Tin Alloy |
| Housing Material | Zinc Die Cast |
| Ingress Protection | IP20 |
| Mounting Type | Panel Mount |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | Straight |
| Ratings | Cat6a |
| Shielding | Unshielded |
| Tab Direction | Down |
| Termination | IDC |
