T24C106K125USS
ActiveVishay Dale
T24S106K125CUS
T24C106K125USS
ActiveVishay Dale
T24S106K125CUS
Description
General part information
T24C106K125USS

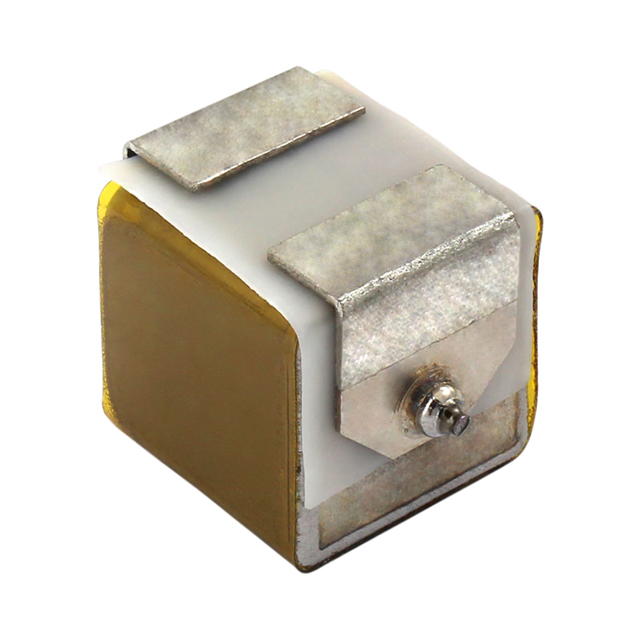

10 µF Hermetically Sealed Tantalum Capacitors 125 V Nonstandard 5.5Ohm @ 120Hz
Technical Specifications
Parameters and characteristics for this part
| Specification | T24C106K125USS |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 5.5 Ohm |
| Features | Wet Tantalum |
| Height - Seated (Max) | 0.299 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | C |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Size / Dimension Length | 0.303 in |
| Size / Dimension Width | 0.28 in |
| Tolerance | 10 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 125 VAC |
