4-1437390-0

Obsolete

TE Connectivity AMP Connectors

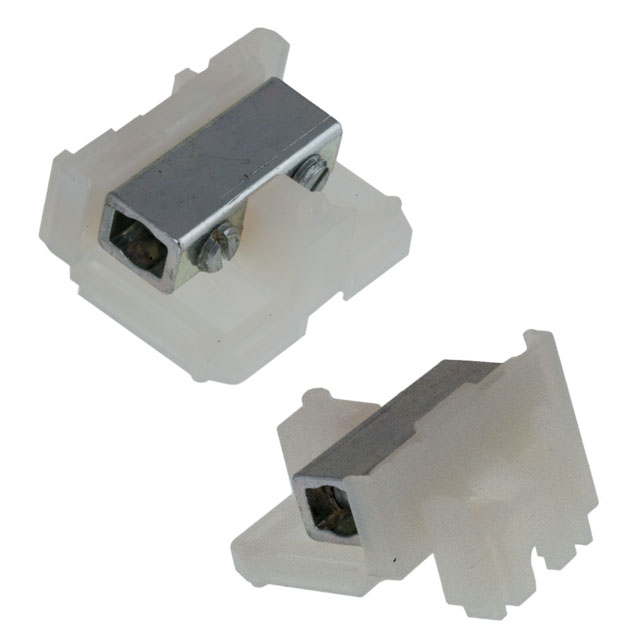

TERM BLK NEMA 2POS 22.1MM

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

TERM BLK NEMA 2POS 22.1MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-1437390-0	1437390 Series

Current - UL	85 A	35 - 85 A
Height (Max) [Max]	32.26 mm	32.26 mm
Height (Max) [Max]	1.27 "	1.27 "
Length [x]	1.42 in	1.42 in
Length [x]	36.07 mm	36.07 mm
Material - Insulation	Nylon, Polyamide (PA)	Phenol Formaldehyde (Phenolic), Nylon, Polyamide (PA)
Mounting Type	Direct Mount	Channel, DIN Rail Mount, Direct Mount
Number of Levels	1	1
Number of Positions	2	2
Operating Temperature	150 °C	150 °C
Terminal - Width [y]	22.1 mm	22.1 mm
Termination Style	Tubular Screw	Screw, Screw with Captive Plate, Tubular Clamp, Tubular Screw
Type	NEMA Open Construction	NEMA Open Construction
Wire Gauge or Range - AWG [Max]	18 AWG	18 - 22 AWG
Wire Gauge or Range - AWG [Min]	4 AWG	4 - 10 AWG

TERM BLK NEMA 2POS

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Type	Material - Insulation	Number of Positions	Termination Style	Number of Levels	Operating Temperature	Current - UL	Length [x]	Length [x]	Height (Max) [Max]	Height (Max) [Max]	Terminal - Width [y]
TE Connectivity AMP Connectors 1437390-8	22 AWG	10 AWG	Channel, DIN Rail Mount	NEMA Open Construction	Phenol Formaldehyde (Phenolic)	2	Screw	1	150 °C	35 A
TE Connectivity AMP Connectors 1437390-1	22 AWG	10 AWG	Direct Mount	NEMA Open Construction	Phenol Formaldehyde (Phenolic)	2	Screw	1	150 °C	35 A
TE Connectivity AMP Connectors 4-1437390-2	18 AWG	8 AWG	Direct Mount	NEMA Open Construction	Nylon, Polyamide (PA)	2	Screw with Captive Plate	1	150 °C	50 A
TE Connectivity AMP Connectors 2-1437390-9	18 AWG	6 AWG	Direct Mount	NEMA Open Construction	Phenol Formaldehyde (Phenolic)	2	Tubular Clamp	1	150 °C	65 A
TE Connectivity AMP Connectors 4-1437390-0	18 AWG	4 AWG	Direct Mount	NEMA Open Construction	Nylon, Polyamide (PA)	2	Tubular Screw	1	150 °C	85 A	1.42 in	36.07 mm	32.26 mm	1.27 "	22.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Position Terminal Block NEMA Open Construction 22.1mm
