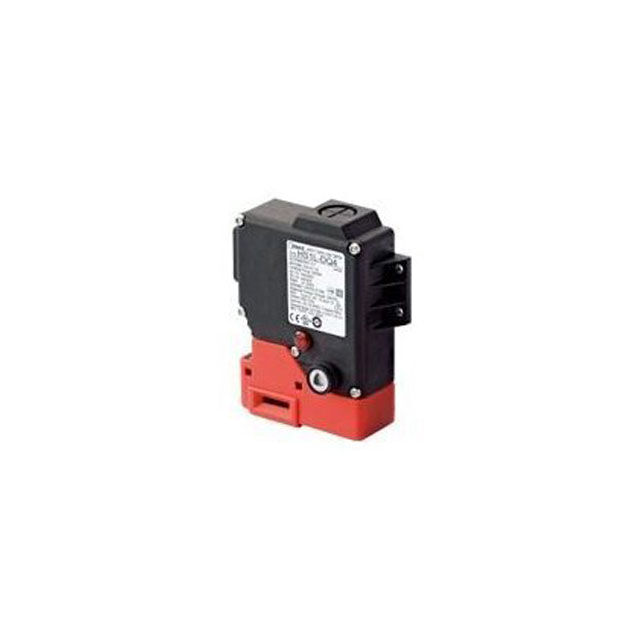

HS1L-DT44KMSRM-G
ActiveIDEC Corporation
SAFETY SWITCH SPRING LOCK ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HS1L-DT44KMSRM-G
ActiveIDEC Corporation
SAFETY SWITCH SPRING LOCK ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HS1L-DT44KMSRM-G | HS1L Series |
|---|---|---|
| Actuator Type | - | Panel Disconnect |
| Approval Agency | - | CE, TUV, cULus |
| Circuit | - | 3PST-NC x 2 |
| Conduit Thread Size | - | 1/2" NPT |
| Current Rating (Amps) | - | 8 - 10 A |
| Features | - | Status Indicator |
| Holding Force | - | 306 kgf |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| null | - | |
| Operating Temperature | - | 55 °C |
| Operating Temperature | - | -20 C |
| Termination Style | - | Screw Terminal |
| Type | - | Solenoid Release |
| Voltage - Supply | - | 24 VDC |
| Voltage Rating | - | 30 - 125 VAC |
HS1L Series
SAFETY SWITCH SOLENOID LOCK ROHS COMPLIANT: YES
| Part | Holding Force | Approval Agency | Current Rating (Amps) | Features | Actuator Type | Voltage - Supply | Ingress Protection | Voltage Rating | Circuit | Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Conduit Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation HS1L-DT7Y4KMSRM-R | ||||||||||||||
IDEC Corporation HS1L-DT44KMSRM-R | 306 kgf | CE, cULus, TUV | 8 A, 10 A | Status Indicator | Panel Disconnect | 24 VDC | IP67 - Dust Tight, Waterproof | 30 VDC, 125 VAC | 3PST-NC x 2 | Solenoid Release | 55 °C | -20 C | Screw Terminal | |
IDEC Corporation HS1L-DT44KMSRM-G | ||||||||||||||
IDEC Corporation HS1L-DT44KMSR-R | 306 kgf | CE, cULus, TUV | 8 A, 10 A | Status Indicator | Panel Disconnect | 24 VDC | IP67 - Dust Tight, Waterproof | 30 VDC, 125 VAC | 3PST-NC x 2 | Solenoid Release | 55 °C | -20 C | Screw Terminal | 1/2" NPT |
IDEC Corporation HS1L-DT44KMSR-G | 306 kgf | CE, cULus, TUV | 8 A, 10 A | Status Indicator | Panel Disconnect | 24 VDC | IP67 - Dust Tight, Waterproof | 30 VDC, 125 VAC | 3PST-NC x 2 | Solenoid Release | 55 °C | -20 C | Screw Terminal | 1/2" NPT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HS1L Series
SAFETY SWITCH SPRING LOCK ROHS COMPLIANT: YES
