MK18-B-300W
ActiveStandex-Meder Electronics
SENSOR REED SW SPST-NO W LEADS
MK18-B-300W
ActiveStandex-Meder Electronics
SENSOR REED SW SPST-NO W LEADS
Description
General part information
MK18-B-300W

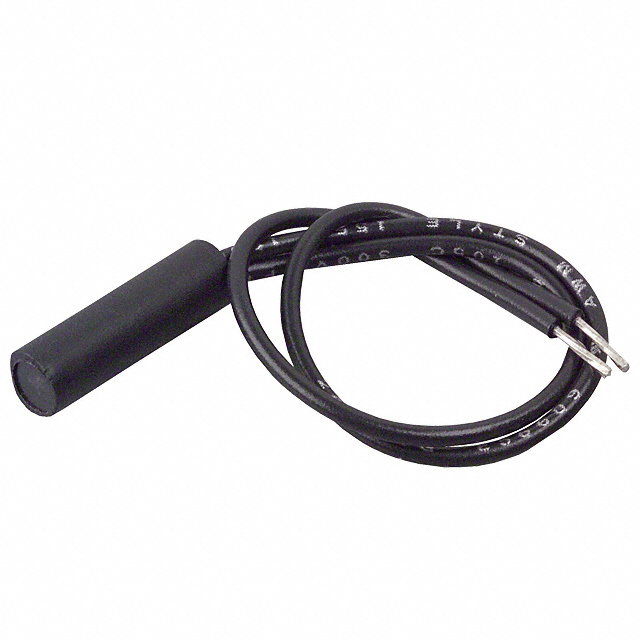

Magnetic Reed Switch Magnet SPST-NO Wire Leads Molded Body
Technical Specifications
Parameters and characteristics for this part
| Specification | MK18-B-300W |
|---|---|
| Actuator Material | Magnet |
| Must Operate (AT) (Max) | 25 AT |
| Must Operate (AT) (Min) | 10 AT |
| Must Release (Max) | 22 AT |
| Must Release (Min) | 4 AT |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Output Type | SPST-NO |
| Package / Case | Molded Body |
| Termination Style | Wire Leads |
| Type | Reed Switch |
