Description
General part information

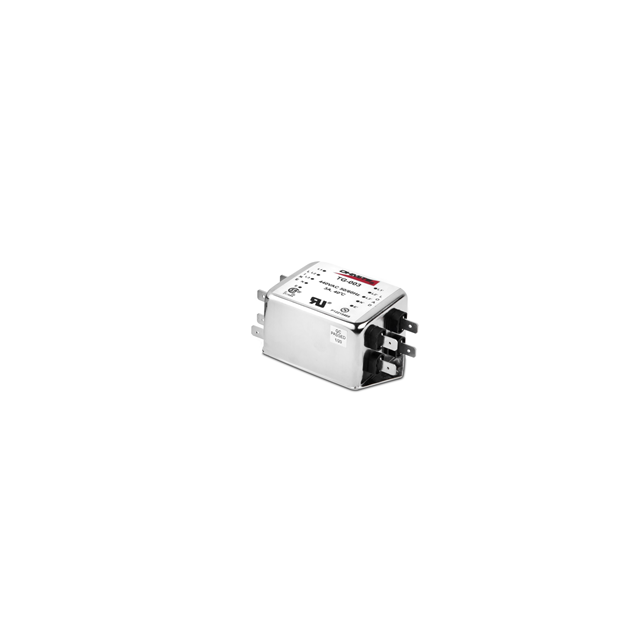

TGA-006
Three Phase (Wye) EMC/EMI Line Filter 6 A 440V 50/60Hz Single Stage Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | TGA-006 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cCSAus, CE, UR |
| Configuration | Single Stage |
| Current | 6 A |
| Filter Subtype | Wye |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 440 V |
