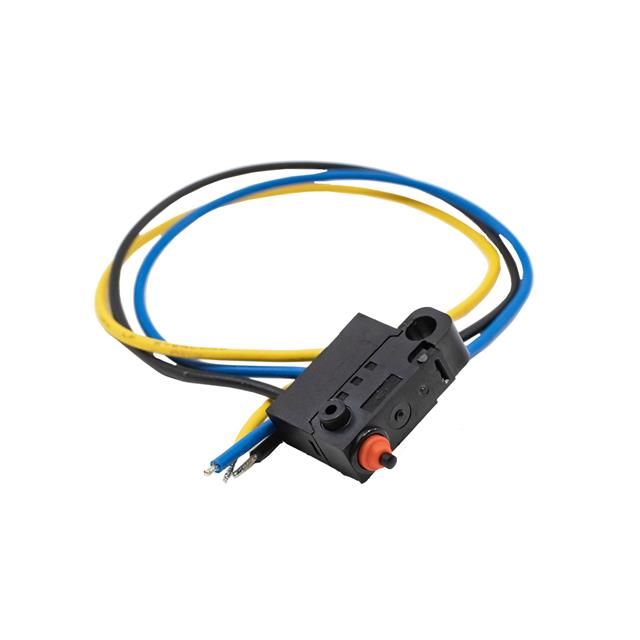

WS10850100F130WA

Active

E-Switch

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

MICROSWITCH, SNAP ACTION, PIN PLUNGER, SPDT, WIRE LEADED, 3 A, 12 V

Part	Switch Function	Ingress Protection	Termination Style	Voltage Rating - DC	Electrical Life	Actuator Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Mechanical Life	Voltage Rating - AC	Circuit
E-Switch WS1085300F130WA	On-On	IP67 - Dust Tight, Waterproof	Wire Leads	12 V	100000 Cycles	Round (Pin Plunger)	3 A	85 °C	-40 °C	130 gf	500000 Cycles	125 V	SPDT
E-Switch WS1085300F130SA	On-On	IP67 - Dust Tight, Waterproof	Solder Lug	12 V	100000 Cycles	Round (Pin Plunger)	3 A	85 °C	-40 °C	130 gf	500000 Cycles	125 V	SPDT
E-Switch WS10850100F130SA	On-On	IP67 - Dust Tight, Waterproof	Solder Lug	48 V	100000 Cycles	Round (Pin Plunger)	100 mA	85 °C	-40 °C	130 gf	500000 Cycles	125 V	SPDT
E-Switch WS10850100F130WA	On-On	IP67 - Dust Tight, Waterproof	Wire Leads	48 V	100000 Cycles	Round (Pin Plunger)	100 mA	85 °C	-40 °C	130 gf	500000 Cycles	125 V	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Panel Mount
