Description
General part information

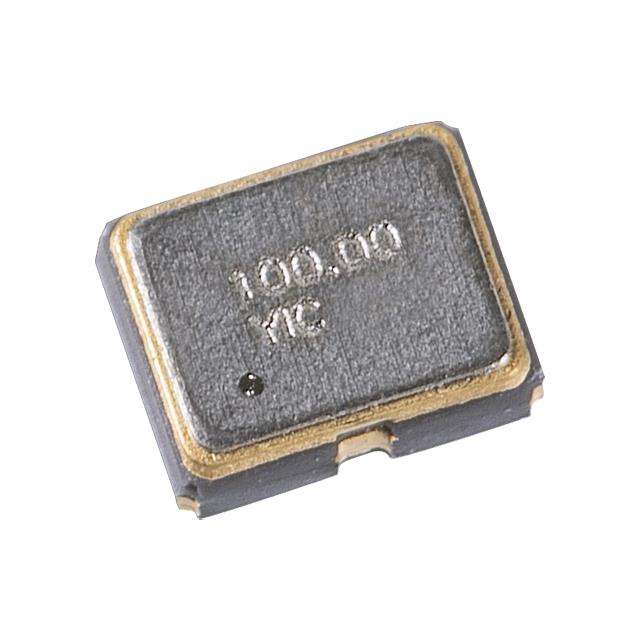

OSCLD100M-3.3I/S22-25
100 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | OSCLD100M-3.3I/S22-25 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 30 mA |
| Frequency | 100 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.039 in, 0.043 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVDS |
| Package / Case | No Lead, 6-SMD |
| Package Length | 2.5 mm |
| Package Name | 6-SMD |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
