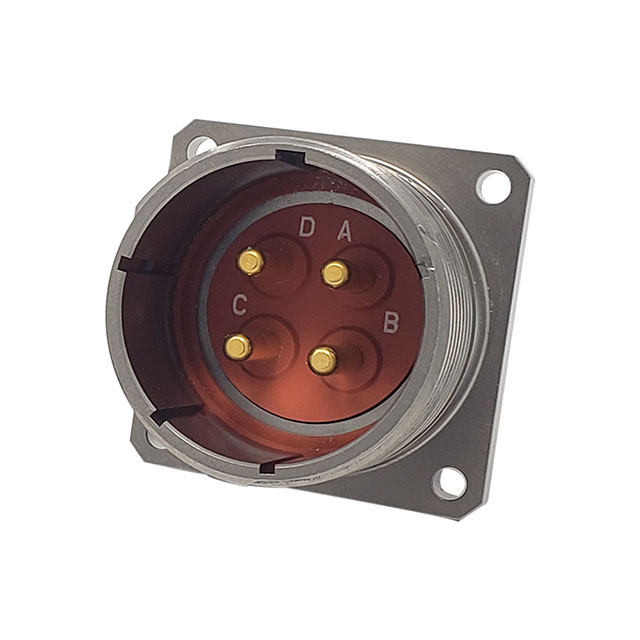

TVM07DS-25L-10P

Active

Amphenol Aerospace Operations

MATRIX 38999, TRI-START SERIES I

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TVM07DS-25L-10P

Active

Amphenol Aerospace Operations

MATRIX 38999, TRI-START SERIES I

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TVM07DS-25L-10P	TVM07DS Series

Connector Type	Receptacle Housing	Receptacle Housing
Contact Shape	Circular	Circular
Contact Size	8	4 - 16
Contact Type	Crimp	Crimp
Housing Color	Silver	Silver
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Note	Contacts Not Included; Insert Not Included	Contacts Not Included; Insert Not Included
Number of Positions	7	4 - 7
Orientation	N	N
Qualification	MIL-DTL-38999 Series III	MIL-DTL-38999 Series III
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	25L-10	37-17, 23L-2, 23L-22, 25L-22, 25L-10
Shell Size - Insert	-	33
Shell Size - Insert	-	22
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

TVM07DS Series

MATRIX 38999, TRI-START SERIES I

Part	Shell Material	Orientation	Qualification	Contact Type	Housing Color	Connector Type	Shielding	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Mounting Feature	Contact Size	Type	Note	Contact Shape	Shell Finish	Number of Positions	Shell Size - Insert
Amphenol Aerospace Operations TVM07DS-33-22P	Aluminum Alloy	N	MIL-DTL-38999 Series III	Crimp	Silver	Receptacle Housing	Unshielded	33	22	Bulkhead - Front Side Nut	4, 16	For Male Pins	Contacts Not Included; Insert Not Included	Circular	Nickel	6
Amphenol Aerospace Operations TVM07DS-37-17P	Aluminum Alloy	N	MIL-DTL-38999 Series III	Crimp	Silver	Receptacle Housing	Unshielded			Bulkhead - Front Side Nut	4 4	For Male Pins	Contacts Not Included; Insert Not Included	Circular	Nickel	4	37-17
Amphenol Aerospace Operations TVM07DS-23L-2P	Aluminum Alloy	N	MIL-DTL-38999 Series III	Crimp	Silver	Receptacle Housing	Unshielded			Bulkhead - Front Side Nut	8	For Male Pins	Contacts Not Included; Insert Not Included	Circular	Nickel		23L-2
Amphenol Aerospace Operations TVM07DS-23L-22P	Aluminum Alloy	N	MIL-DTL-38999 Series III	Crimp	Silver	Receptacle Housing	Unshielded			Bulkhead - Front Side Nut	8	For Male Pins	Contacts Not Included; Insert Not Included	Circular	Nickel	4	23L-22
Amphenol Aerospace Operations TVM07DS-25L-22P	Aluminum Alloy	N	MIL-DTL-38999 Series III	Crimp	Silver	Receptacle Housing	Unshielded			Bulkhead - Front Side Nut	8	For Male Pins	Contacts Not Included; Insert Not Included	Circular	Nickel	4	25L-22
Amphenol Aerospace Operations TVM07DS-25L-10P	Aluminum Alloy	N	MIL-DTL-38999 Series III	Crimp	Silver	Receptacle Housing	Unshielded			Bulkhead - Front Side Nut	8	For Male Pins	Contacts Not Included; Insert Not Included	Circular	Nickel	7	25L-10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 407.02
		10	$ 358.93
		25	$ 328.53

Description

General part information

TVM07DS Series

7 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources
