Specification	M24308/2-5Z

Connector Layout	D, DD
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Type	Signal
Current Rating	7.5 A
Flange Feature	Shell (Unthreaded), Housing
Mounting Type	Panel Mount
Number of Positions	50
Number of Rows	3
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size	5
Termination	Crimp

M24308/2 Series

Part	Mating Cycles	Dielectric Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Note	Connector Style	Contact Type	Number of Positions	Connector Type	Flange Feature	Mounting Type	Shell Size	Connector Layout	Finish	Shell Material	Number of Rows	Current Rating	Material Flammability Rating	Contact Finish	Shell Material, Finish	Termination	Contact Form	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Material	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Primary Material

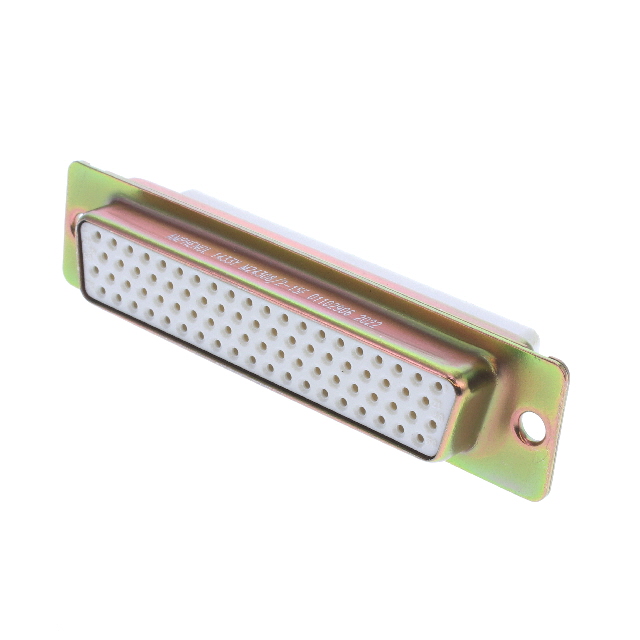

McGill Microwave Systems M24308/2-290F	500 cycles	Glass Filled Polyester	Natural	125 °C	-55 °C	Contacts Not Included	D-Sub High Density	Signal	78	Receptacle for Female Contacts	Housing Shell (Unthreaded)	Panel Mount	5	D DD High Density	Yellow Cadmium Plated	Steel	4
McGill Microwave Systems M24308/2-11Z		Glass Filled Polyester	Natural	125 °C	-55 °C		D-Sub High Density	Signal	15	Female Sockets Receptacle	Housing Shell (Unthreaded)	Panel Mount	1	DE E High Density			3	5 A	UL94 V-0	Gold	Steel Yellow Chromate Plated Zinc	Crimp	Machined	28 AWG	22 AWG	Copper Alloy
McGill Microwave Systems M24308/2-2F		Glass Filled Polyester	Natural	125 °C	-55 °C		D-Sub	Signal	15	Female Sockets Receptacle	Housing Shell (Unthreaded)	Panel Mount	2	A DA	Yellow Cadmium Plated	Steel	2	7.5 A	UL94 V-0	Gold		Crimp	Machined	26 AWG	19.5 AWG	Copper Alloy
McGill Microwave Systems M24308/2-3F							D-Sub	Signal	25	Female Sockets Receptacle	Housing Shell (Unthreaded)	Free Hanging (In-Line) Panel Mount	3	B DB	Cadmium Plated Yellow Cadmium Plated	Steel	2	7.5 A	UL94 V-0	Gold		Crimp					50 µin

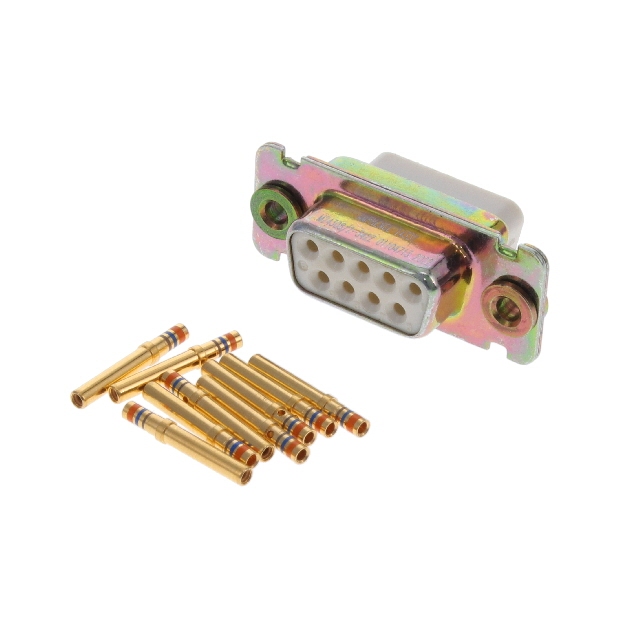

McGill Microwave Systems M24308/2-342Z							D-Sub	Signal	9	Female Sockets Receptacle	Housing Shell (Unthreaded)	Panel Mount	1	DE E			2	7.5 A	UL94 V-0	Gold	Steel Yellow Chromate Plated Zinc	Crimp
McGill Microwave Systems M24308/2-342Z		Glass Filled Polyester	Natural	125 °C	-55 °C		D-Sub	Signal	9	Female Sockets Receptacle	Housing Shell (Unthreaded)	Panel Mount	1	DE E			2	7.5 A	UL94 V-0	Gold	Steel Yellow Chromate Plated Zinc	Crimp	Machined	26 AWG	19.5 AWG	Copper Alloy
McGill Microwave Systems M24308/2-526		Glass Filled Polyester	Natural	125 °C	-55 °C		D-Sub High Density	Signal	15	Female Sockets Receptacle	Housing Shell (Unthreaded)	Panel Mount	1	DE E High Density	Nickel Plated	Steel	3	5 A	UL94 V-0	Gold		Crimp	Machined	28 AWG	22 AWG	Copper Alloy	0	Flash	Flash	Metal
McGill Microwave Systems M24308/2-5F
McGill Microwave Systems M24308/2-3F
McGill Microwave Systems M24308/2-1Z							D-Sub	Signal	9	Female Sockets Receptacle	Housing Shell (Unthreaded)	Panel Mount	1	DE E			2	7.5 A	UL94 V-0	Gold	Steel Yellow Chromate Plated Zinc	Crimp
