Description

General part information

2476057-1

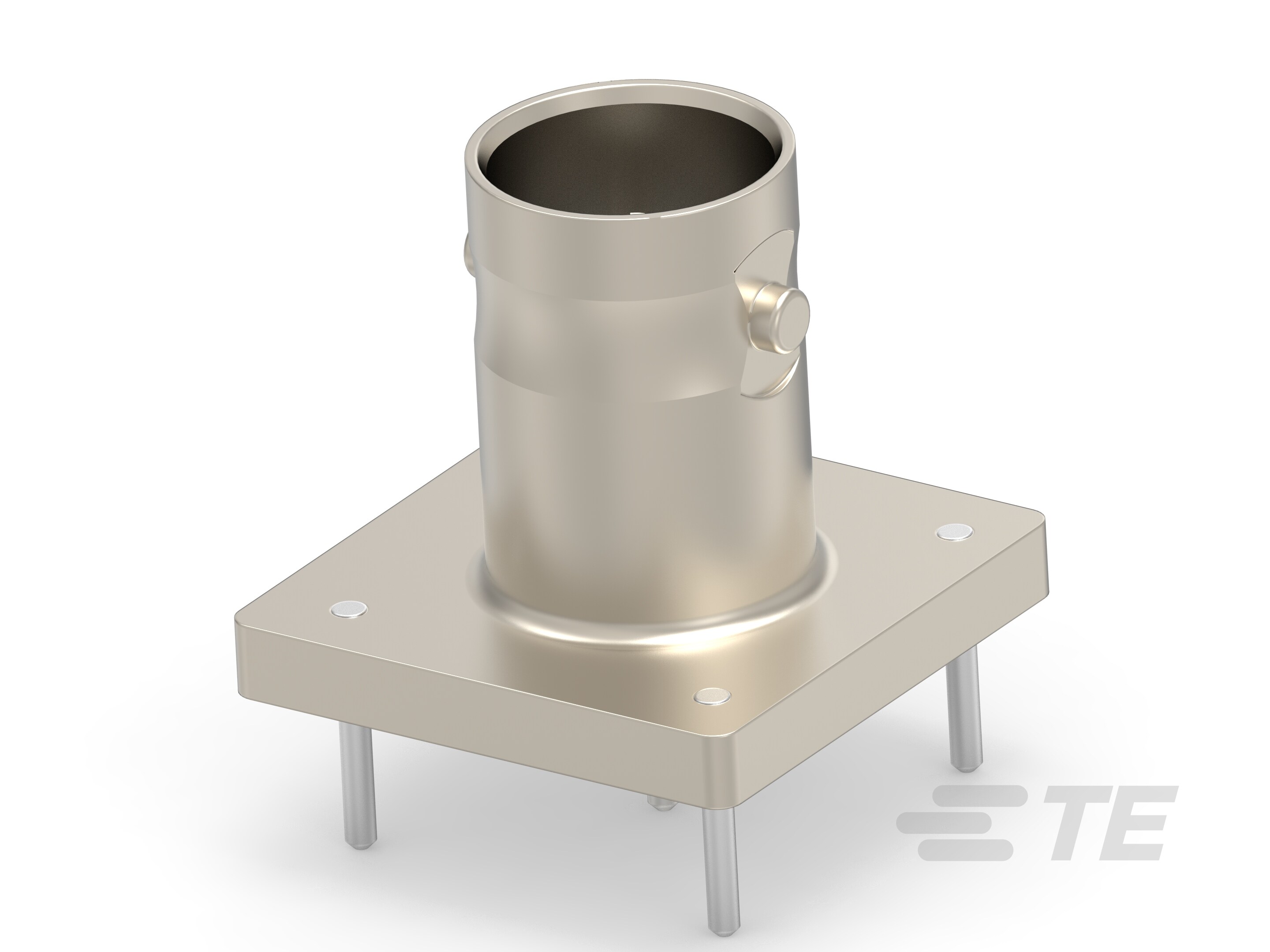

BNC Connector, Jack, 75 ohm, Bayonet, 0 – 2 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Board Mount, -65 – 165 °C [-85 – 329 °F], Brass

Technical Specifications

Parameters and characteristics for this part

Specification2476057-1
Body FinishNickel
Body MaterialBrass
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleBNC
Connector TypeJack, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeBayonet Lock
Frequency - Max2 GHz
Housing ColorSilver
Impedance75 Ohm
Mating Cycles500 cycles
Mounting FeatureFlange
Mounting TypePanel Mount, Through Hole
Number of Ports1
Operating Temperature (Max)165 °C
Operating Temperature (Min)-65 °C
Shield TerminationSolder
Voltage Rating500 V
