293D686X9016E2TE3
ActiveVishay Dale
CAP TANT 68UF 10% 16V 2917
293D686X9016E2TE3
ActiveVishay Dale
CAP TANT 68UF 10% 16V 2917
Description
General part information
293D686X9016E2TE3
68 µF Molded Tantalum Capacitors 16 V 2917 (7343 Metric) 800mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | 293D686X9016E2TE3 |
|---|---|
| Capacitance | 68 µF |
| ESR (Equivalent Series Resistance) | 800 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.17 in |
| Manufacturer Size Code | E |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |

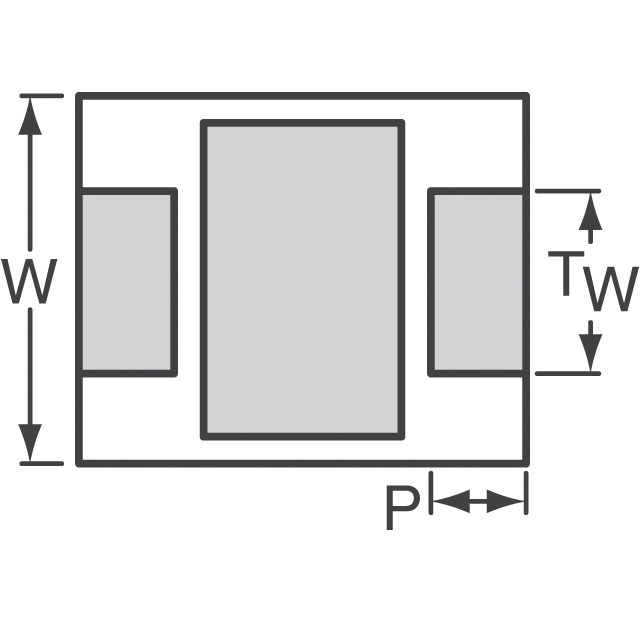

| Package / Case | 2917 (7343 Metric) |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 16 V |
