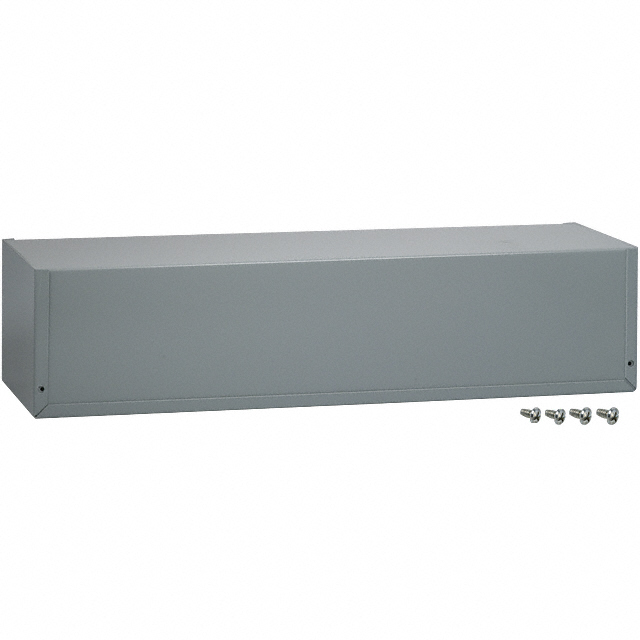

1411Z
ActiveHammond Manufacturing
BOX ALUM GRAY 16.98"L X 5.01"W
Deep-Dive with AI
Search across all available documentation for this part.
1411Z
ActiveHammond Manufacturing
BOX ALUM GRAY 16.98"L X 5.01"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1411Z | 1411 Series |
|---|---|---|
| Area (L x W) | 549 cm² | 40.2 - 549 cm˛ |
| Area (L x W) | 85.1 in² | 6.23 - 85.1 in˛ |
| Area (L x W) | - | 15 in² |
| Color | Gray | Gray, Unpainted, Black |
| Container Type | Box | Box |
| Design | U Shaped Pieces | U Shaped Pieces |
| Height [z] | 101.6 mm | 41.66 - 101.85 mm |
| Height [z] | 101.6 mm | 1.64 - 101.6 in |
| Material | Metal, Aluminum | Metal, Aluminum |
| Size / Dimension | - | 57.15 - 126.75 mm |
| Size / Dimension | - | 177.55 mm |
| Size / Dimension [x] | 16.98 in | 2.77 - 16.98 in |
| Size / Dimension [x] | 431.29 mm | 6.99 - 431.29 mm |
| Size / Dimension [y] | 127.25 mm | 4.99 - 177.55 mm |
| Size / Dimension [y] | 5.01 in | 2.25 - 6.99 " |
| Thickness | 0.04 in | 0.04 in |
| Thickness | 1.02 mm | 1.02 mm |
| Weight | 1.4 lbs | 0.14 - 1.4 lb |
| Weight | 635 g | 63.5 - 635 g |
1411 Series
BOX ALUM GRAY 4"L X 2.3"W
| Part | Color | Weight | Weight | Area (L x W) | Area (L x W) | Height [z] | Height [z] | Container Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Design | Thickness | Thickness | Material | Size / Dimension [y] | Area (L x W) | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing 1411F | Gray | 0.24 lb | 108.86 g | 9.2 in˛ | 59.4 cm˛ | 3.02 in | 76.71 mm | Box | 4 in | 101.6 mm | 2.3 " | 58.42 mm | U Shaped Pieces | 0.04 in | 1.02 mm | Aluminum, Metal | |||
Hammond Manufacturing 1411N | Gray | 0.28 lb | 127.01 g | 97 cm² | 2.26 in | 57.4 mm | Box | 5 in | 127 mm | 3.01 in | U Shaped Pieces | 0.04 in | 1.02 mm | Aluminum, Metal | 76.45 mm | 15 in² | |||
Hammond Manufacturing 1411M | Gray | 0.36 lb | 163.29 g | 17.8 in² | 115 cm˛ | 3.01 " | 76.45 mm | Box | 6 in | 152.4 mm | 2.99 in | U Shaped Pieces | 0.04 in | 1.02 mm | Aluminum, Metal | 75.95 mm | |||
Hammond Manufacturing 1411TU | Unpainted | 0.3 lb | 136.08 g | 22.4 in˛ | 145 cm˛ | 1.64 in | 41.66 mm | Box | 9.99 in | 253.75 mm | 2.25 in | U Shaped Pieces | 0.04 in | 1.02 mm | Aluminum, Metal | 57.15 mm | |||
Hammond Manufacturing 1411FBNBK | Black | 0.28 lb | 127.01 g | 97 cm² | 2.26 in | 57.4 mm | Box | 5 in | 127 mm | 3.01 in | U Shaped Pieces | 0.04 in | 1.02 mm | Aluminum, Metal | 76.45 mm | 15 in² | |||
Hammond Manufacturing 1411QU | Unpainted | 0.6 lb | 272.16 g | 34.8 in˛ | 225 cm² | 3.01 " | 76.45 mm | Box | 6.99 " | 126.75 mm | U Shaped Pieces | 0.04 in | 1.02 mm | Aluminum, Metal | 4.99 " | 177.55 mm | |||
Hammond Manufacturing 1411FBPBK | Black | 0.62 lb | 281.23 g | 29.9 in² | 193 cm² | 4.01 in | 101.85 mm | Box | 5.99 in | 152.15 mm | 4.99 in | U Shaped Pieces | 0.04 in | 1.02 mm | Aluminum, Metal | 126.75 mm | |||
Hammond Manufacturing 1411K | Gray | 0.24 lb | 108.86 g | 11.3 in² | 73 cm² | 2.26 in | 57.4 mm | Box | 5 in | 127 mm | 2.25 in | U Shaped Pieces | 0.04 in | 1.02 mm | Aluminum, Metal | 57.15 mm | |||
Hammond Manufacturing 1411P | Gray | 0.62 lb | 281.23 g | 29.9 in² | 193 cm² | 4.01 in | 101.85 mm | Box | 5.99 in | 152.15 mm | 4.99 in | U Shaped Pieces | 0.04 in | 1.02 mm | Aluminum, Metal | 126.75 mm | |||
Hammond Manufacturing 1411Z | Gray | 1.4 lbs | 635 g | 85.1 in² | 549 cm² | 101.6 mm | 101.6 mm | Box | 16.98 in | 431.29 mm | 5.01 in | U Shaped Pieces | 0.04 in | 1.02 mm | Aluminum, Metal | 127.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.68 | |
| 5 | $ 38.19 | |||
| 10 | $ 35.70 | |||
| 25 | $ 32.65 | |||
| 50 | $ 31.88 | |||
Description
General part information
1411 Series
Box Metal, Aluminum Gray U Shaped Pieces 16.980" L x 5.010" W (431.29mm x 127.25mm) X 4.000" (101.60mm)
