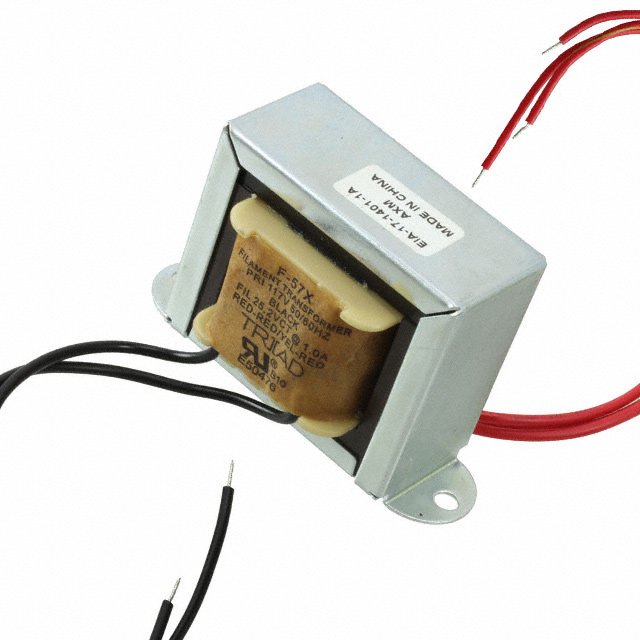

F-57X
ActiveTriad Magnetics
PWR XFMR LAMINATED 25.2VA CHAS
F-57X
ActiveTriad Magnetics
PWR XFMR LAMINATED 25.2VA CHAS
Description
General part information
F-57X
PWR XFMR LAMINATED 25.2VA CHAS
Technical Specifications
Parameters and characteristics for this part
| Specification | F-57X |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 1 A |
| Height - Seated (Max) | 49.2 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 25.2 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 80.56 mm |
| Size / Dimension Width | 2 in |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 117 V |
| Voltage - Secondary (Full Load) | 25.2 V |
| Weight | 1.5 lbs |
