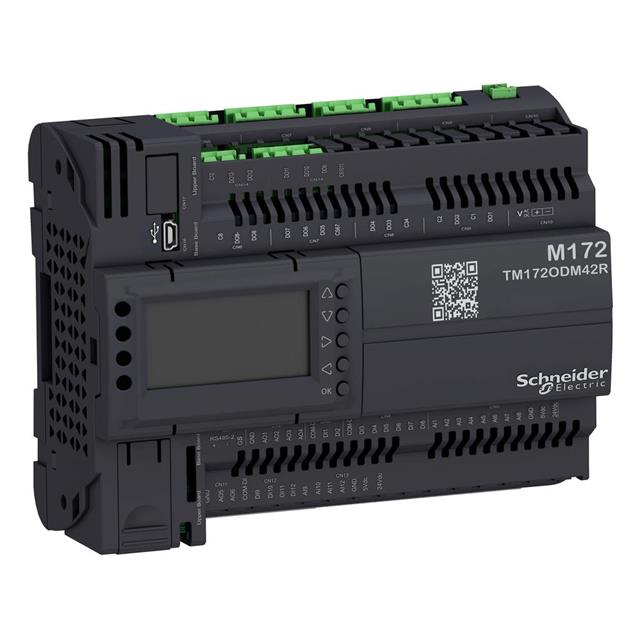

TM172ODM42R
ActiveSCHNEIDER ELECTRIC
MODICON M172 OPTIMIZED DISPLAY 4
TM172ODM42R
ActiveSCHNEIDER ELECTRIC
MODICON M172 OPTIMIZED DISPLAY 4
Description
General part information
TM172ODM42R
Programmable Logic Controller (PLC) DIN Rail 24VAC/DC
Technical Specifications
Parameters and characteristics for this part
| Specification | TM172ODM42R |
|---|---|
| Analog Outputs | 6 |
| Approval Agency | EAC, CSA, cURus, CE, RCM |
| Communications | RS-485, USB |
| Digital Outputs | 12 |
| Display Type | No Display |
| Expandable | Non-Expandable |
| Ingress Protection | IP20 |
| Input Types | Digital, Analog |
| Mounting Type | DIN Rail |
| Number of Analog Inputs | 12 |
| Number of Digital Inputs | 12 |
| Number of Inputs | 24 |
| Number of Outputs | 18 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Analog, Digital |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Option 2) | 24 DC |
