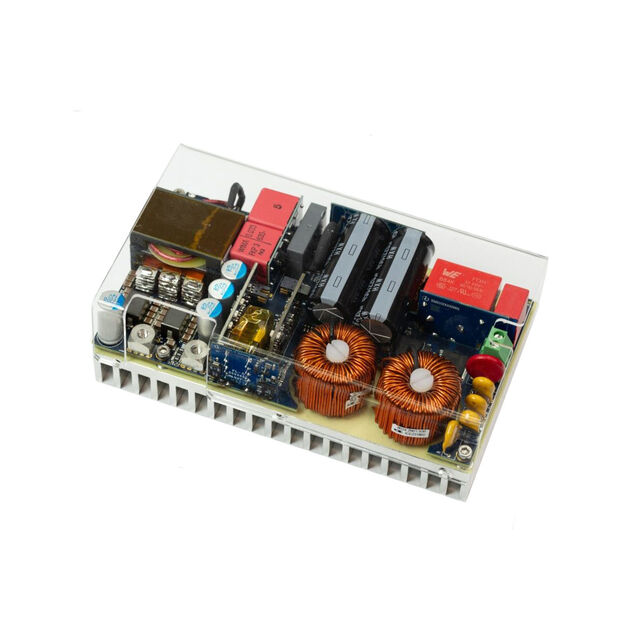

REF1KWPSU5GGANTOBO1
The PSU comprises a front-end AC-DC bridgeless totem-pole PFC converter followed by a back-end DC-DC isolated half-bridge (HB) LLC converter. The front-end converter provides power factor correction (PFC) and control of the total harmonic distortion (THD). The LLC converter provides safety isolation and a tightly regulated output voltage at 12 VDC.
Technical Specifications
Parameters and characteristics for this part
| Specification | REF1KWPSU5GGANTOBO1 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 83 A |
| Isolated Output Count | 1 |
| Main Purpose | DC/DC Converter |
| Output Type | Isolated |
| Power - Output | 1 kW |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Voltage - Input | 230 V |
| Voltage - Output | 12 V |
