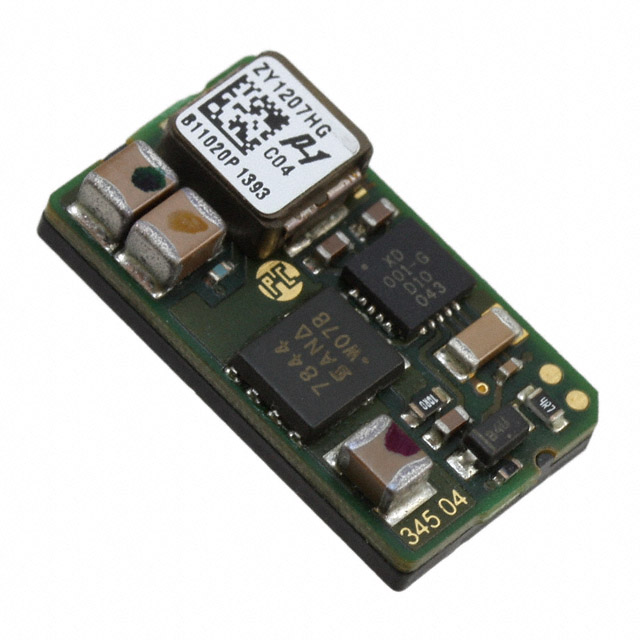

Specification	ZY1207HG-T3

Applications	ITE (Commercial)
Current - Output (Max)	7 A
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	36-SMD Module
Size / Dimension Height	0.26 in
Size / Dimension Length	0.87 in
Size / Dimension Width	0.49 in
Type	Digital, Non-Isolated PoL Module
Voltage - Input (Max)	14 V
Voltage - Input (Min)	3 V
Voltage - Output 1 (Max)	5.5 V
Voltage - Output 1 (Min)	0.5 V
