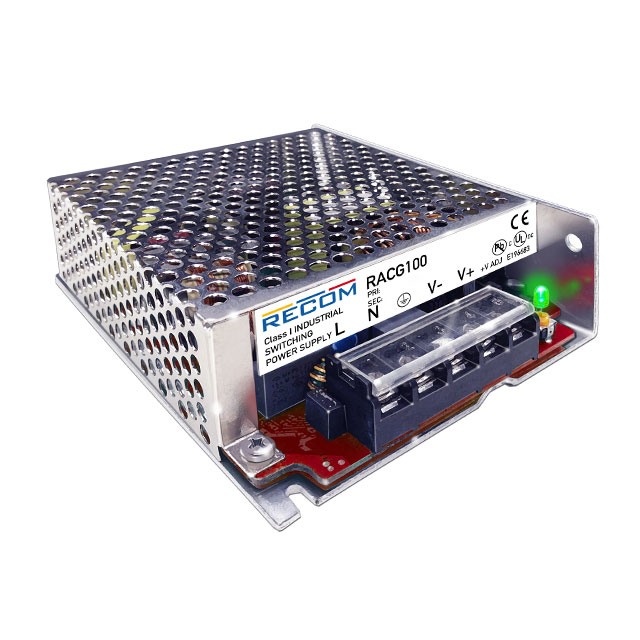

RACG100-24S
ObsoleteRecom Power
AC/DC CONVERTER 24V 100W
RACG100-24S
ObsoleteRecom Power
AC/DC CONVERTER 24V 100W
Description
General part information
RACG100-24S
Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RACG100-24S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output 1 | 4.5 A |
| Efficiency | 88 % |
| Features | PFC, DC Input Capable, Adjustable Output, Universal Input |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 100 W |
| Size / Dimension Height | 1.5 in |
| Size / Dimension Length | 5.08 in |
| Size / Dimension Width | 3.86 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
