TD-68.000MBD-T
ObsoleteTXC CORPORATION
MEMS OSC XO 68.0000MHZ CMOS SMD
TD-68.000MBD-T
ObsoleteTXC CORPORATION
MEMS OSC XO 68.0000MHZ CMOS SMD
Description
General part information
TD-68.000MBD-T

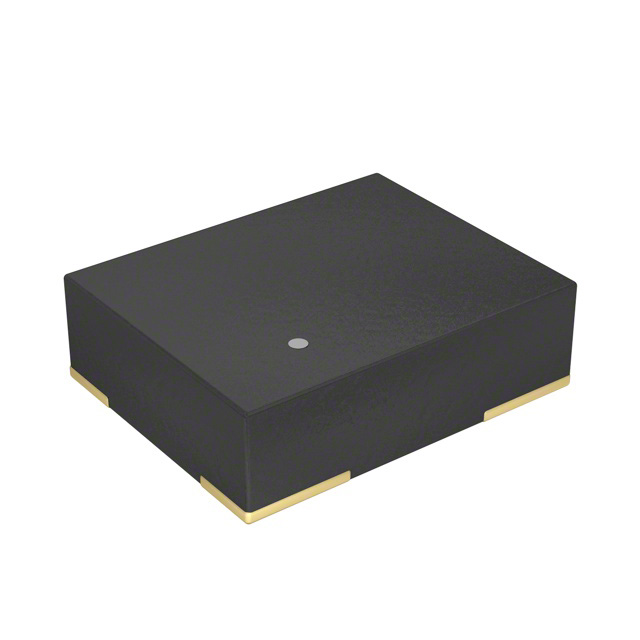

68 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TD-68.000MBD-T |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) | 30 mA |
| Frequency | 68 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
