Description
General part information

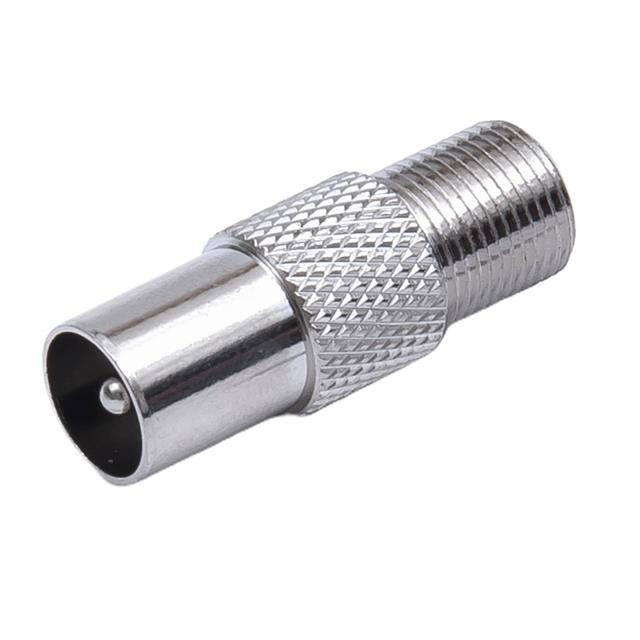

PAL-P-FJ
Adapter Coaxial Connector PAL Plug, Male Pin To F Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PAL-P-FJ |
|---|---|
| Adapter Series | F to PAL |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Nickel |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, PAL Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | F Jack |
| Fastening Type | Push-Pull, Threaded |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -20 °C |
| Style | Straight |
