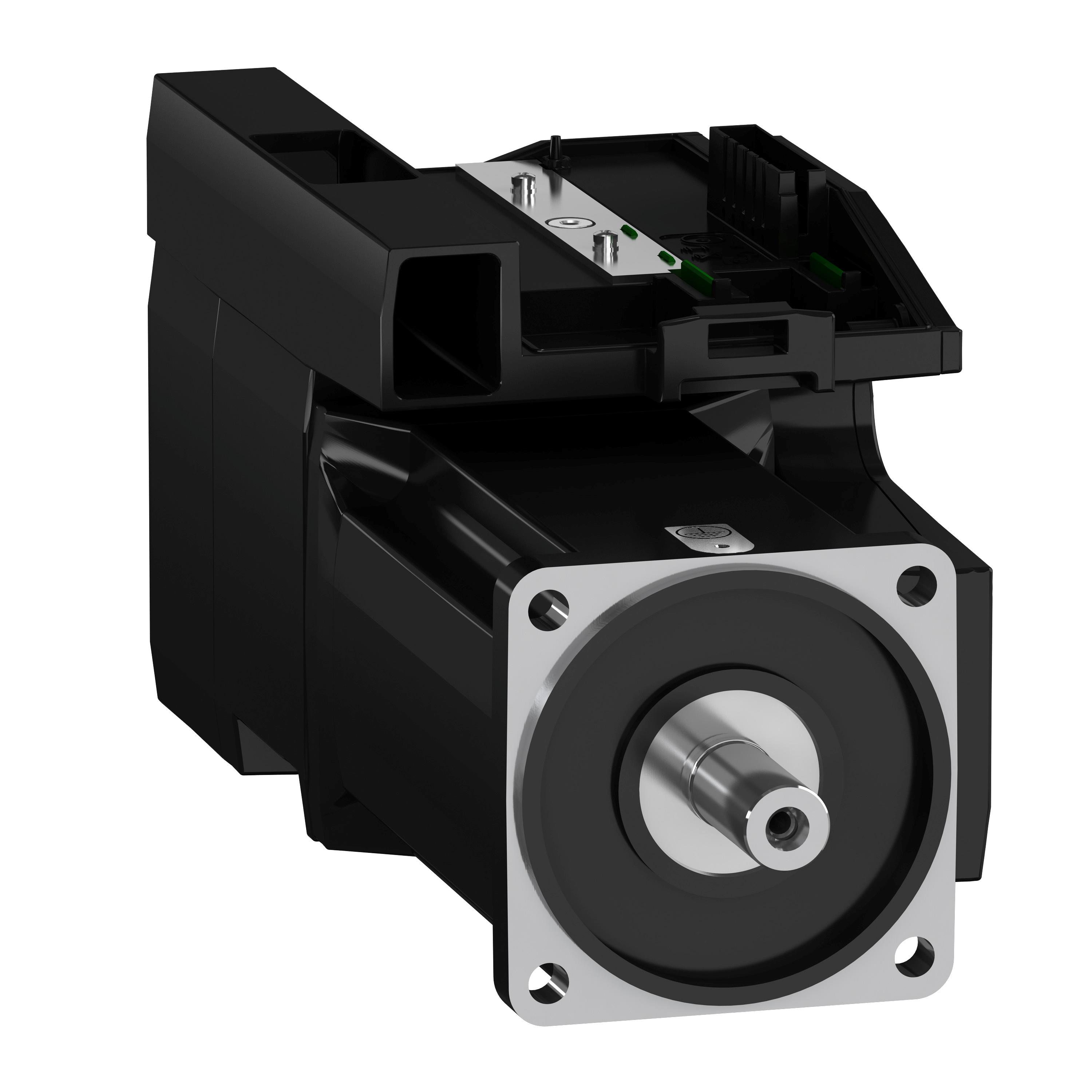

BMI1002T32F
ActiveSCHNEIDER ELECTRIC
MOT 1P 100MM IP65 1,3KW KEY ENC
BMI1002T32F
ActiveSCHNEIDER ELECTRIC
MOT 1P 100MM IP65 1,3KW KEY ENC
Description
General part information
BMI1002T32F
AC Motor Servomotor 6000 RPM 1.3kW Absolute 115 ~ 230VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BMI1002T32F |
|---|---|
| Diameter - Shaft | 0.75 in |
| Encoder Type | Absolute |
| Features | Brake, Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 1.57 in |
| Mounting Hole Spacing | 3.74 in |
| Power - Rated | 1300 W |
| RPM | 6000 RPM |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.937 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 5400 mNm |
| Torque - Rated (oz-in) | 764.7 oz-in |
| Type | AC Motor |
| Voltage - Rated (Max) | 230 V |
| Voltage - Rated (Min) | 115 VAC |
