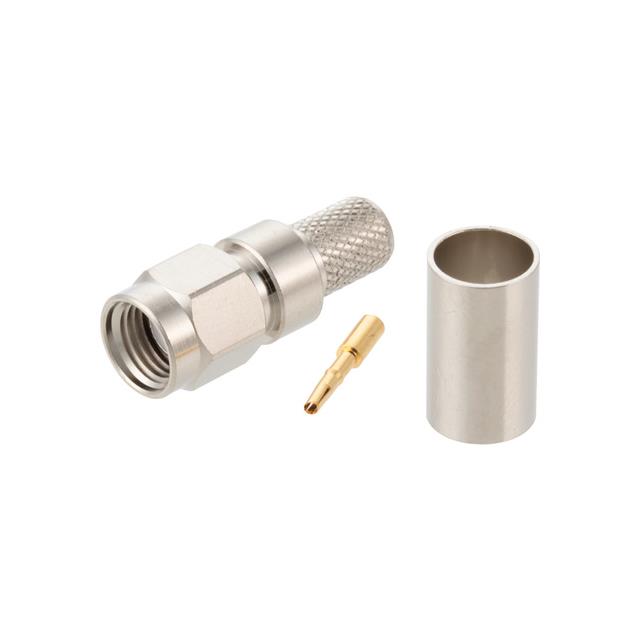

ARSP-1504
ActivePasternack
CONRP-SMA PLUG CRIMP LMR240
ARSP-1504
ActivePasternack
CONRP-SMA PLUG CRIMP LMR240
Description
General part information
ARSP-1504
RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | ARSP-1504 |
|---|---|
| Cable Group | LMR-240 |
| Connector Style | RP-SMA |
| Connector Type | Plug, Female Socket |
| Contact Termination | Crimp |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
