HCC240TXV
ObsoleteTT Electronics/BI
OPTOISOLATOR 1KV TRANSISTOR 4SMD
HCC240TXV
ObsoleteTT Electronics/BI
OPTOISOLATOR 1KV TRANSISTOR 4SMD
Description
General part information
HCC240TXV

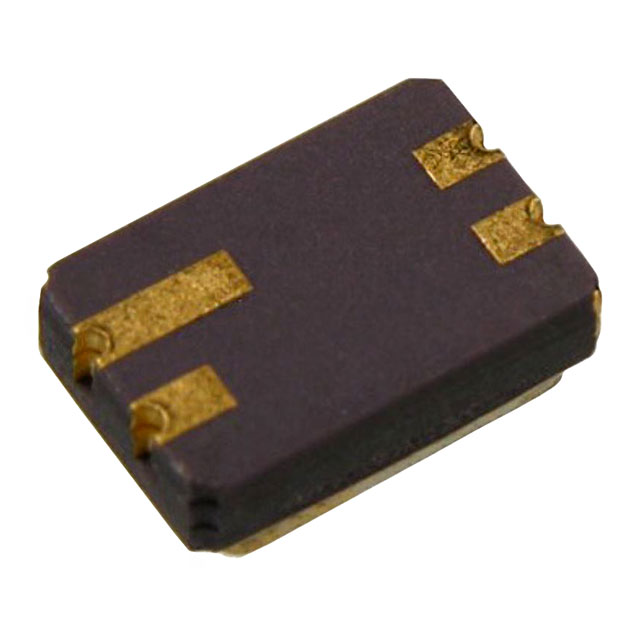

Optoisolator Transistor Output 1000VDC 1 Channel 4-SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | HCC240TXV |
|---|---|
| Current - DC Forward (If) (Max) | 40 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Min) | 25 % |
| Fall Time (Typ) | 15 µs |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Output Type | Transistor |
| Package / Case | 4-SMD, No Lead |
| Package Name | 4-SMD |
| Rise Time (Typ) | 15 µs |
| Vce Saturation (Max) | 300 mV |
| Voltage - Forward (Vf) (Max) | 1.5 V |
| Voltage - Isolation | 1000 Vrms |
| Voltage - Output (Max) | 30 V |
