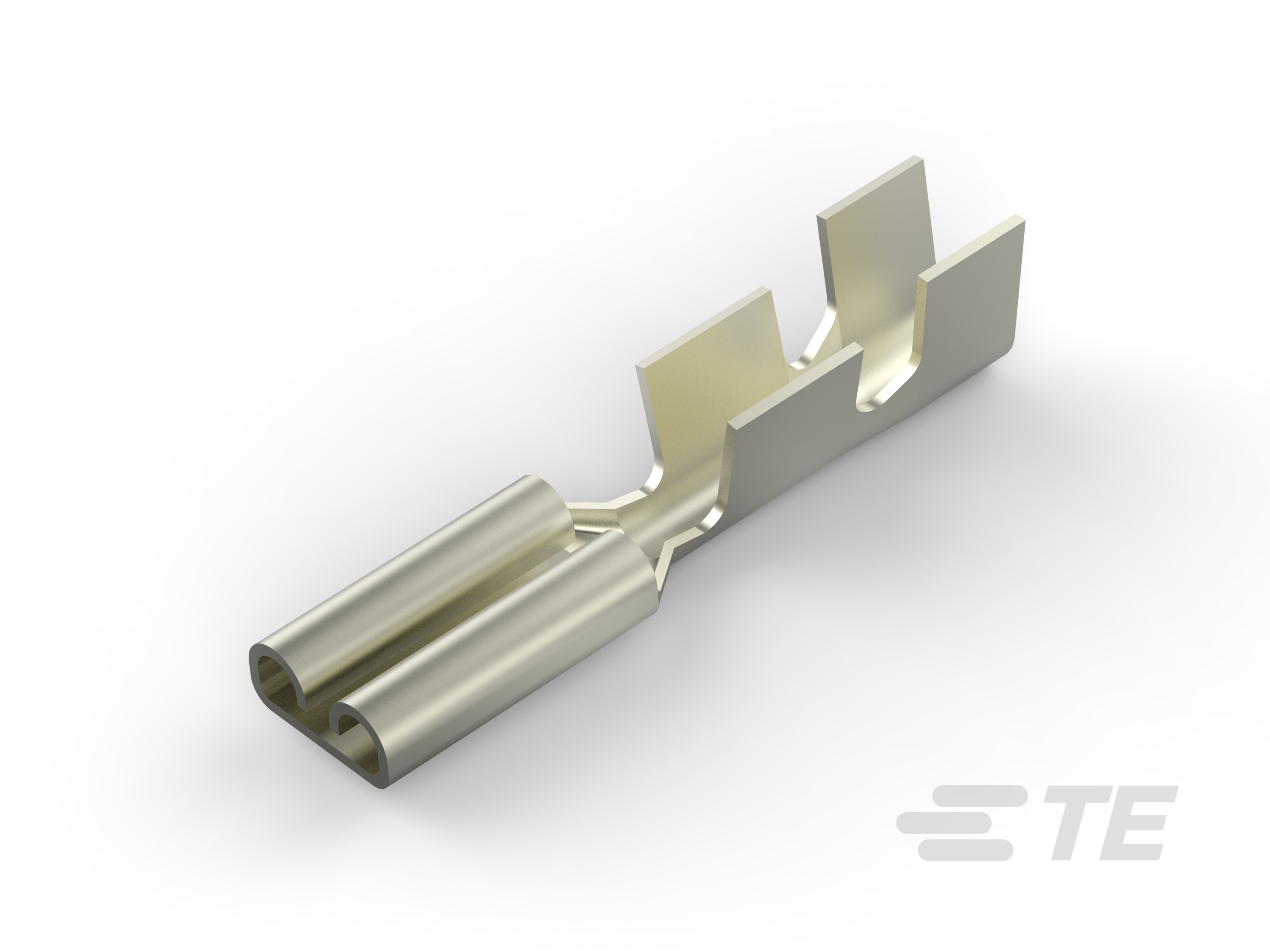

110 FASTON,REC.,20-16 AWG,NPST-1217102-1

1217102-1

Active
TE Connectivity AMP Connectors

RCPT, 110 FASTON 0098 NPCRS ROHS COMPLIANT: YES

Find alt
110 FASTON,REC.,20-16 AWG,NPST-1217102-1

1217102-1

Active
TE Connectivity AMP Connectors

RCPT, 110 FASTON 0098 NPCRS ROHS COMPLIANT: YES

Find alt

Description

General part information

FASTON 110 Series

Quick Disconnect Receptacle, 20 – 16 AWG, .5 – 1.5 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Steel, Nickel Plating, Strip/Reel, FASTON 110

Technical Specifications

Parameters and characteristics for this part

Specification1217102-1
Contact FinishNickel
Contact MaterialSteel
GenderFemale
InsulationNon-Insulated
Length - Overall0.635 in
Mounting TypeFree Hanging (In-Line)
Tab Length0.25 in
Tab Thickness0.02 in
Tab Width0.11 in
Terminal TypeStandard
TerminationCrimp
Wire Gauge (AWG) (Max)20.5 AWG
Wire Gauge (AWG) (Min)16 AWG
