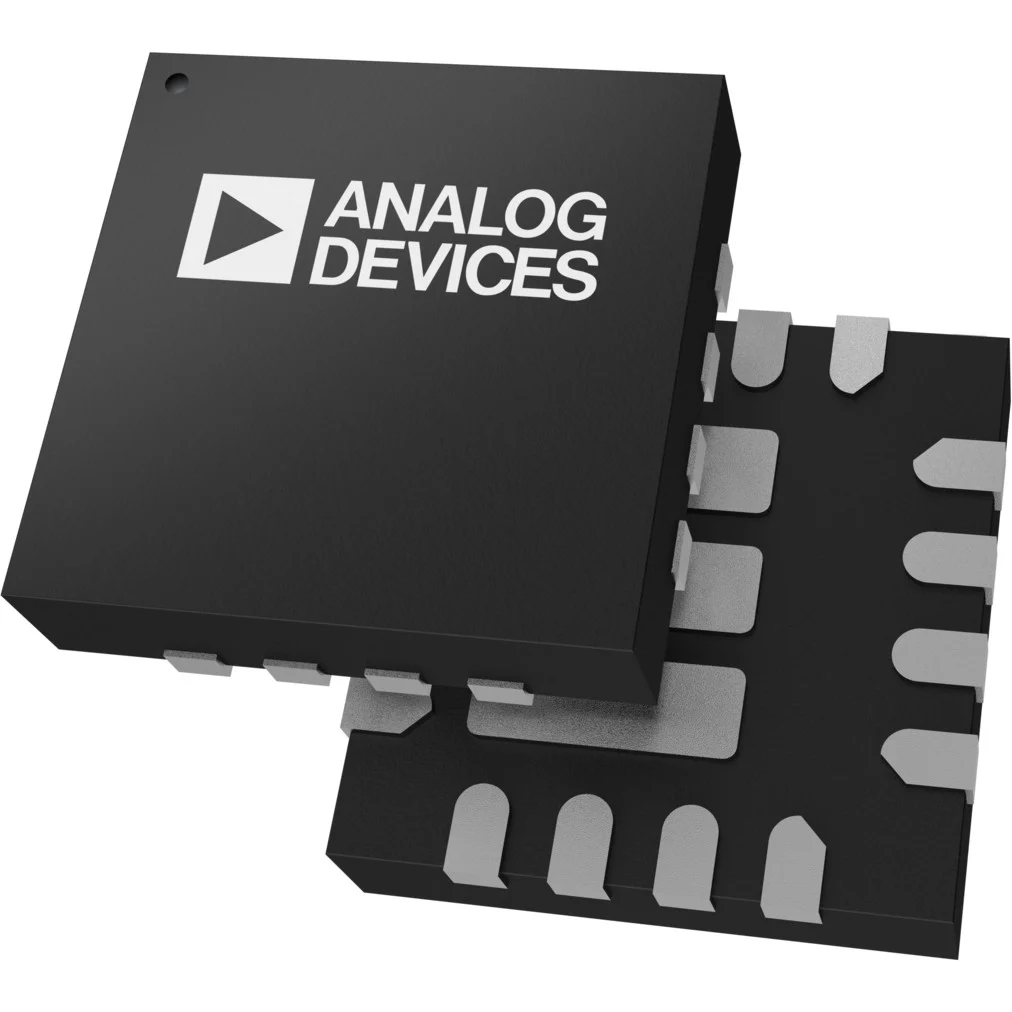

LT7826ACPZ-RL
ActiveAnalog Devices Inc./Maxim Integrated
16V/8A LOW IQ SWITCHED CAP CNVRT
LT7826ACPZ-RL
ActiveAnalog Devices Inc./Maxim Integrated
16V/8A LOW IQ SWITCHED CAP CNVRT
Description
General part information
LT7826ACPZ-RL
16V/8A LOW IQ SWITCHED CAP CNVRT
Technical Specifications
Parameters and characteristics for this part
| Specification | LT7826ACPZ-RL |
|---|---|
| Current - Output | 8 A |
| Frequency - Switching | 500 kHz |
| Function | Ratiometric |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Positive or Negative, Positive, Negative |
| Output Type | Fixed |
| Package / Case | 16-PowerVFQFN |
| Package Length | 3 mm |
| Package Name | 16-LFCSP |
| Package Width | 3 mm |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
| Voltage - Input (Max) (Option 1) | 8.5 V |
| Voltage - Input (Max) (Option 2) | 17 V |
| Voltage - Input (Min) | 0 V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin, Vin/2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
