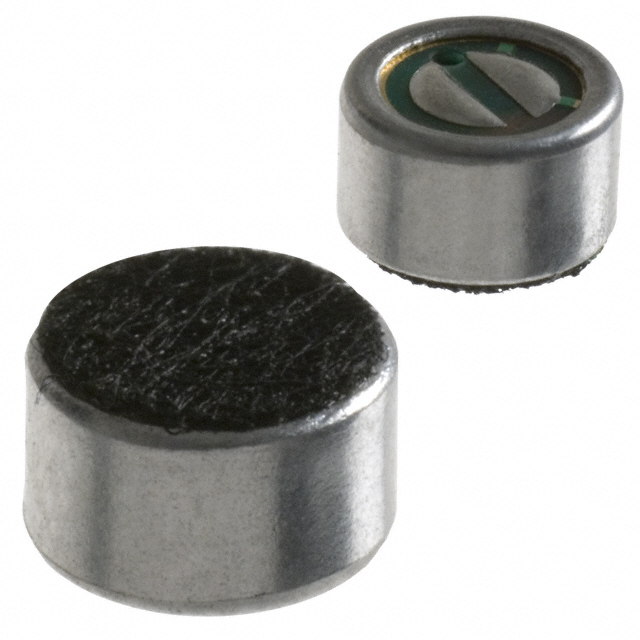

PNM-3546L-R
ObsoletePUI Audio, Inc.
MIC COND ANLG NC -46DB 0.236"DIA
PNM-3546L-R
ObsoletePUI Audio, Inc.
MIC COND ANLG NC -46DB 0.236"DIA
Description
General part information
PNM-3546L-R
50 Hz ~ 16 kHz Analog Microphone Electret Condenser 2 V ~ 10 V Noise Cancelling (-46dB ±4dB) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | PNM-3546L-R |
|---|---|
| Current - Supply | 500 µA |
| Direction | Noise Cancelling |
| Frequency Range (Max) | 16 kHz |
| Frequency Range (Min) | 50 Hz |
| Height (Max) | 0.146 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Sensitivity (Nominal) | -46 dB |
| Sensitivity Tolerance | 4 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.236 in |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage - Rated | 2 VAC |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 2 V |
