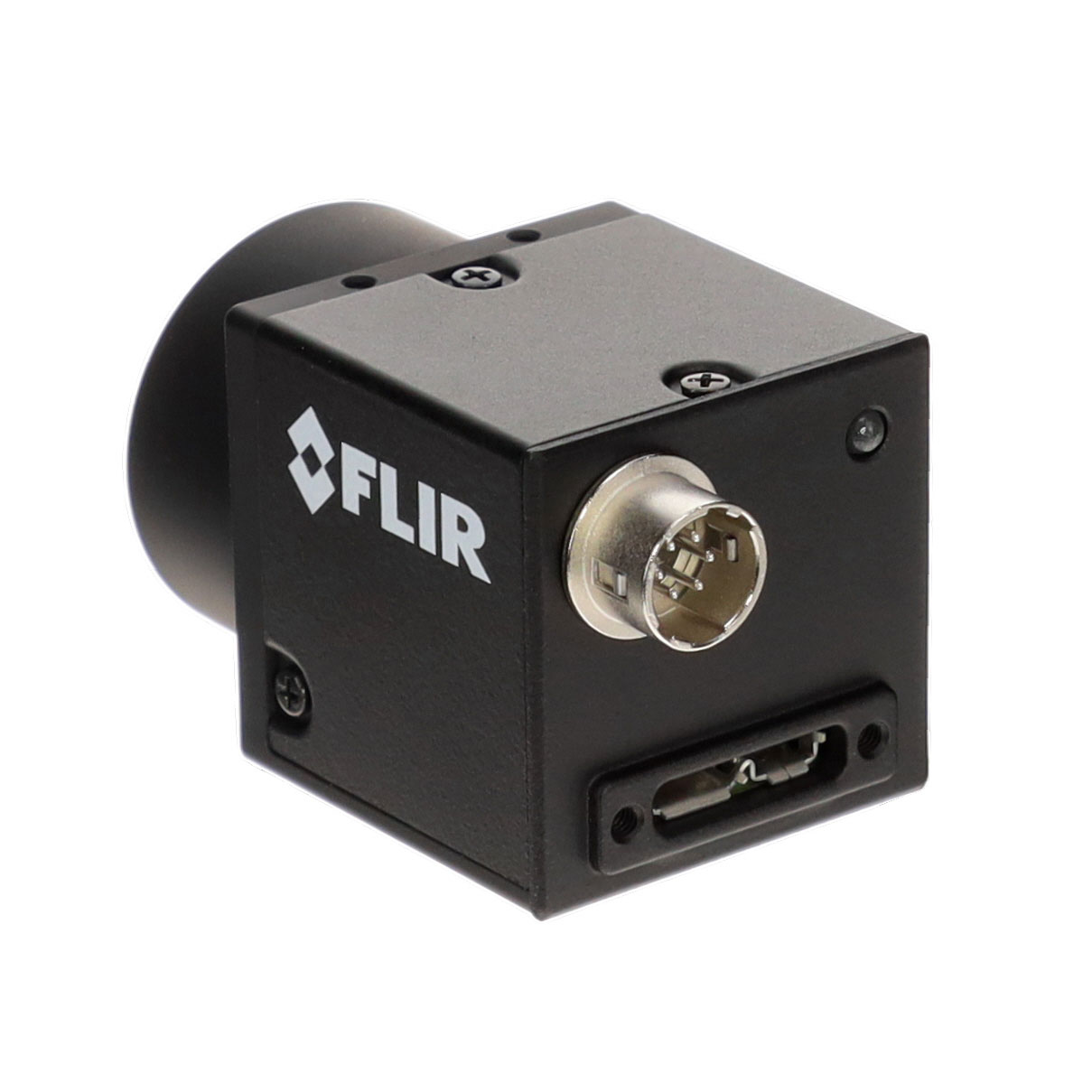

BFLY-U3-50H5C-C
ObsoleteFLIR Integrated Imaging Solutions, Inc.
5.0MP COLOR U3 2/3" C-MOUNT
BFLY-U3-50H5C-C
ObsoleteFLIR Integrated Imaging Solutions, Inc.
5.0MP COLOR U3 2/3" C-MOUNT
Description
General part information
BFLY-U3-50H5C-C
5.0MP COLOR U3 2/3" C-MOUNT
Technical Specifications
Parameters and characteristics for this part
| Specification | BFLY-U3-50H5C-C |
|---|---|
| Color | RGB |
| Frames per Second | 7.5 fps |
| Height (Max) | 1.142 in |
| Lens Mount | C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Package Name | Module |
| Pixel Size (Length) | 3.45 µm |
| Pixel Size (Width) | 3.45 µm |
| Resolution Height | 2048 |
| Resolution Width | 2448 px |
| Sensor | RJ32S3AA0DT |
| Shutter | Global |
| Size / Dimension Length | 1.142 in |
| Size / Dimension Width | 1.181 in |
| Type | CMOS |
| USB Version | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
