2501425-1
ActiveTE Connectivity AMP Connectors

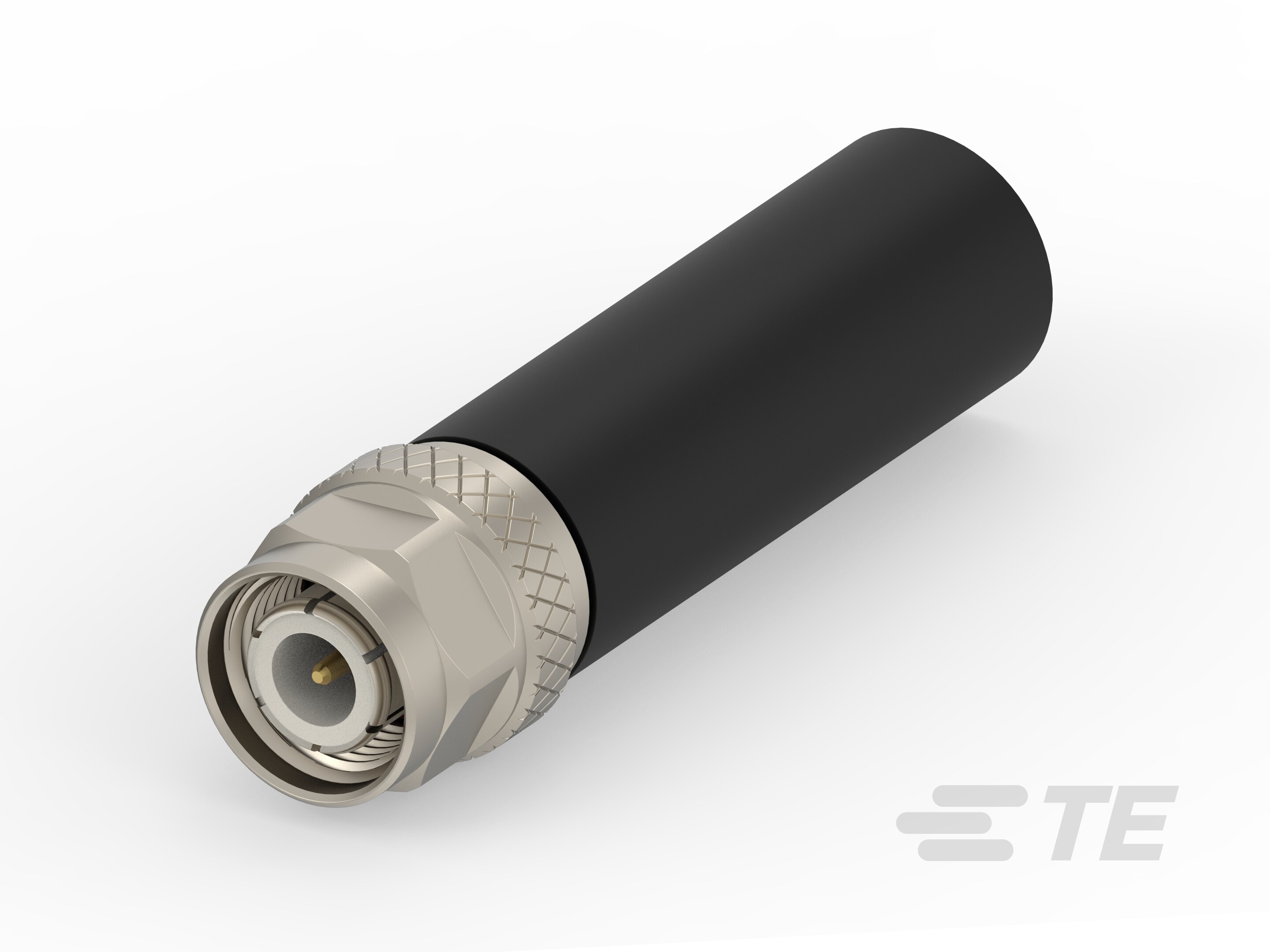

TNC PLUG STR CRIMP LMR-240 WHITE BRONZE
2501425-1
ActiveTE Connectivity AMP Connectors
TNC PLUG STR CRIMP LMR-240 WHITE BRONZE
Description
General part information
2501425-1
TNC Connector, Plug, 50 ohm, Threaded, 0 – 8 GHz, Cable-to-Cable, 1 Position, Wire & Cable, Cable Mount (Free-Hanging), -65 – 165 °C [-85 – 329 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2501425-1 |
|---|---|
| Cable Group | LMR-240 |
| Center Contact Material | Brass |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Fastening Type | Threaded |
| Frequency - Max | 8 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
