FI168P245030-T
NRNDTaiyo Yuden

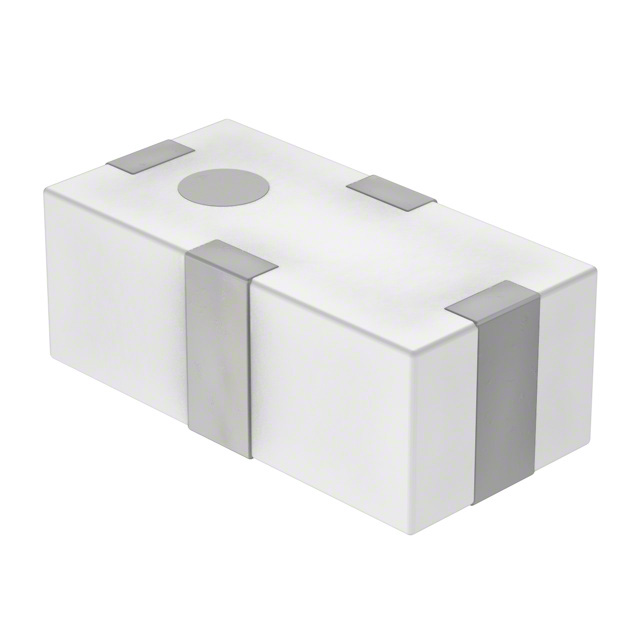

DIPLEXER, 6 PIN, 0603 [1608 METRIC], FI SERIES
FI168P245030-T
NRNDTaiyo Yuden
DIPLEXER, 6 PIN, 0603 [1608 METRIC], FI SERIES
Description
General part information
FI168P245030-T
RF Diplexer 1.558GHz ~ 1.61GHz / 4.9GHz ~ 5.95GHz 0603 (1608 Metric), 6 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | FI168P245030-T |
|---|---|
| Frequency Bands (High) Maximum | 5.95 GHz |
| Frequency Bands (High) Minimum | 4.9 GHz |
| Frequency Bands (Low) Maximum | 1.61 GHz |
| Frequency Bands (Low) Minimum | 1.558 GHz |
| High Band Attenuation (Min) | 32 dB |
| Low Band Attenuation (Min) | 26 dB |
| Mounting Type | Surface Mount |
| Package Name | 0603 |
| Pad Count | 6 PC Pad |
| Type | Diplexer |
