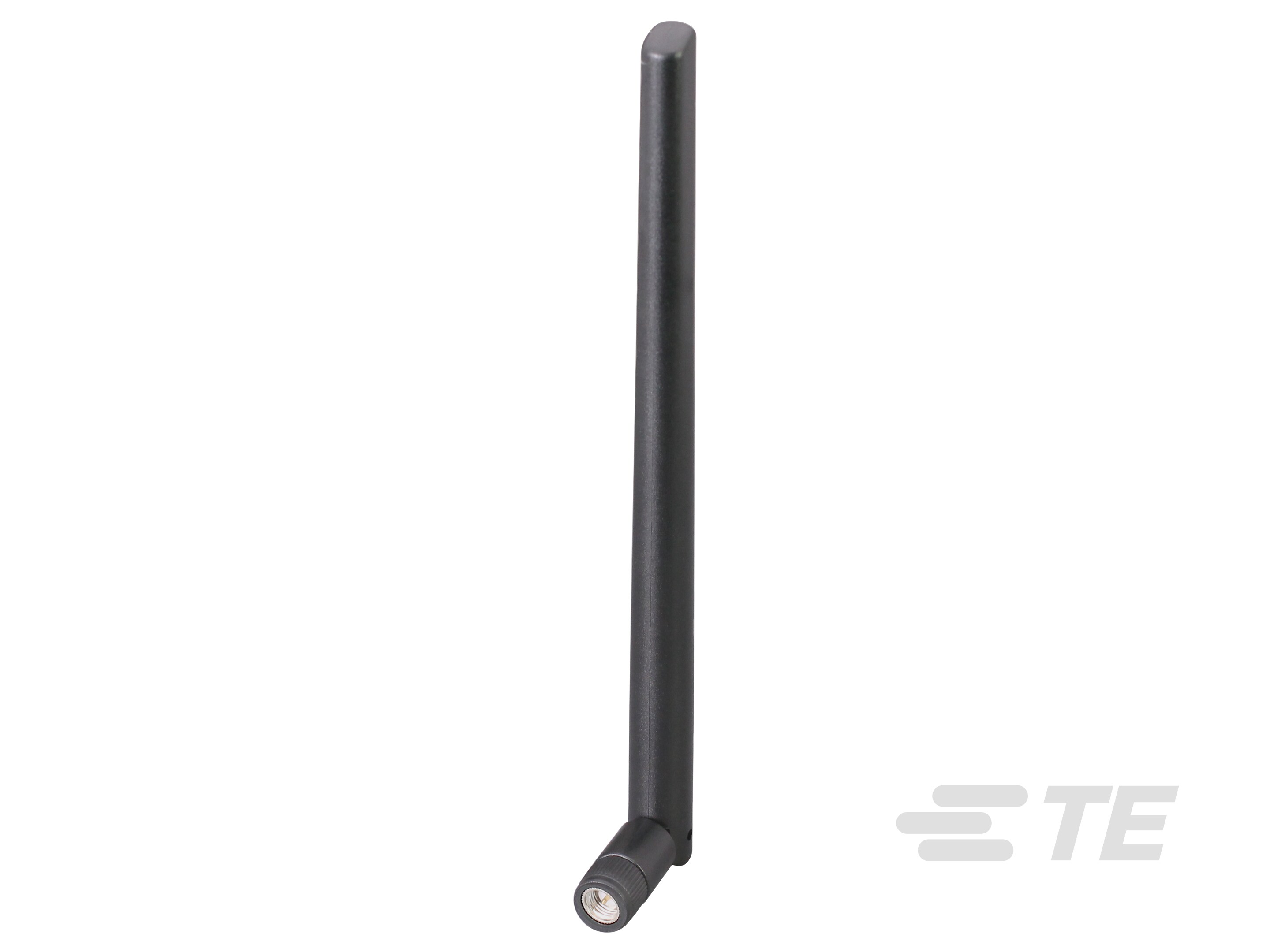

Antenna Wifi6/6E IP67 Blade SMA-L9000366-01

ANT-W63WS6-IPW1-SMA

Active
TE Connectivity AMP Connectors

RF ANT 2.4/5/6GHZ WIFI7 TILT SMA

Find alt
Antenna Wifi6/6E IP67 Blade SMA-L9000366-01

ANT-W63WS6-IPW1-SMA

Active
TE Connectivity AMP Connectors

RF ANT 2.4/5/6GHZ WIFI7 TILT SMA

Find alt

Description

General part information

ANT-W63WS6-IPW1-SMA

Terminal/Duck Antenna, Triple Band, Wi-Fi, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, > 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationANT-W63WS6-IPW1-SMA
Antenna TypeTilt, Blade
Applications802.11ac/ax/be/b/g/n, WLAN, Zigbee™, Bluetooth
Frequency (Center/Band)2.44GHz, 5.5GHz, 5.025GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.485 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.85 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Frequency Range (Band 3) Maximum7.125 GHz
Frequency Range (Band 3) Minimum5.925 GHz
Gain4.7 dBi, 7.2 dBi, 9.4 dBi
Height (Max)7.992 in
Ingress ProtectionIP67
Mounting TypeConnector Mount
Number of Bands3
Power - Max10 VA
RF Family/Standard802.15.4, Bluetooth, WiFi
Termination TypeSMA Male
VSWR1.8, 1.5, 1.6
