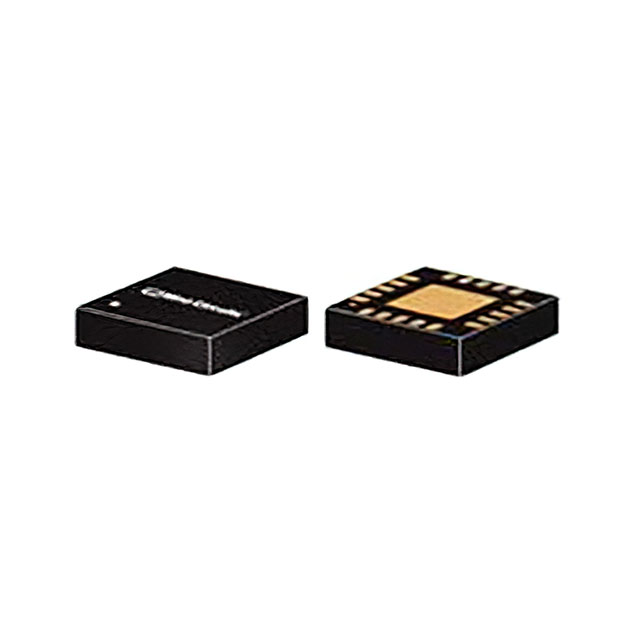

HSWA2-63DR+
RF Switch IC General Purpose SPDT 50Ohm 20-MLCP (4x4)
Technical Specifications
Parameters and characteristics for this part
| Specification | HSWA2-63DR+ |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 6 GHz |
| Frequency Range (Min) | 100 MHz |
| IIP3 | 65 dBm |
| Impedance | 50 Ohm |
| Insertion Loss | 1.6 dB |
| Isolation | 48 dB |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 20-VFQFN Exposed Pad |
| Package Length | 4 mm |
| Package Name | 20-MLCP |
| Package Width | 4 mm |
| RF Type | General Purpose |
| Test Frequency | 6 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 2.7 V |
