SCH53-221
ObsoleteSignal Transformer
FIXED IND 220UH 300MA 3.73OHM SM
SCH53-221
ObsoleteSignal Transformer
FIXED IND 220UH 300MA 3.73OHM SM
Description
General part information
SCH53-221

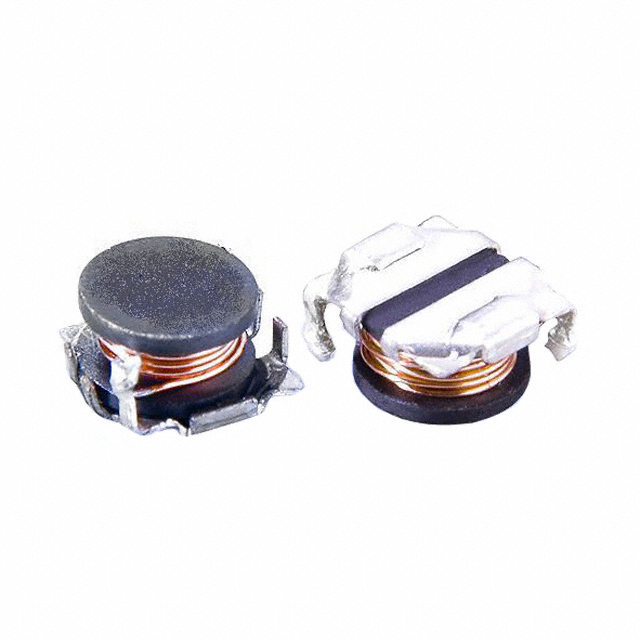

220 µH Unshielded Wirewound Inductor 300 mA 3.73Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCH53-221 |
|---|---|
| Current - Saturation (Isat) | 0.26 mA |
| Current Rating | 0.3 A |
| DC Resistance (DCR) (Max) | 3.73 Ohm |
| Height - Seated (Max) | 0.126 in |
| Inductance | 220 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.213 in |
| Tolerance | 20 % |
| Type | Wirewound |
