Specification	FN2211HV-1500-99-C17-R90

Applications	Inverters, Power Drive Systems
Approval Agency	cURus, CE
Configuration	Single Stage
Current	1500 A
Filter Type	DC
Frequency - Operating	DC
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	0 °C
Termination Style	Terminal Post
Voltage - Rated DC	1500 V

Schaffner FN2211 Series

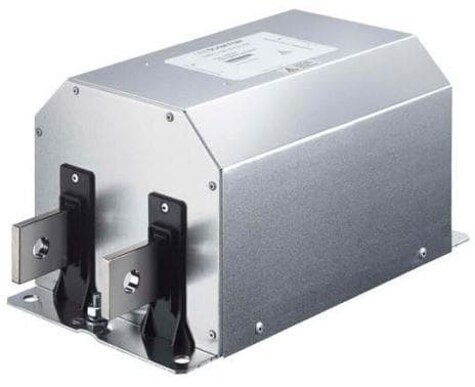

Power Line Filters DC Busbar Filter 1500VDC, 1500A, 47nF, 10MOhm

Part	Operating Temperature (Max)	Operating Temperature (Min)	Frequency - Operating	Approval Agency	Filter Subtype	Filter Type	Applications	Configuration	Current	Mounting Type	Termination Style	Voltage - Rated DC
TE Connectivity AMP Connectors FN2211-1000-99-C23-R99	100 °C	-40 °C	DC	CE cURus UKCA	Wye	Three Phase	Photovoltaic Inverter	Single Stage	1000 A	Chassis Mount	Terminal Post
TE Connectivity AMP Connectors FN2211-400-99-C30-R55	100 °C	-40 °C	DC	CE cURus		DC	Inverters Power Drive Systems	Single Stage	400 A	Chassis Mount	Terminal Post	1000 V
TE Connectivity AMP Connectors FN2211HV-250-99-C27-R99	100 °C	0 °C	DC	CE cURus		DC	Inverters Power Drive Systems	Single Stage	250 A	Chassis Mount	Terminal Post	1500 V
TE Connectivity AMP Connectors FN2211-2300-99-C30-R55	100 °C	-40 °C	DC	CE cURus		DC	Inverters Power Drive Systems	Single Stage	2.3 kA	Chassis Mount	Terminal Post	1000 V
TE Connectivity AMP Connectors FN2211HV-400-99-C17-R90	100 °C	-40 °C	DC	CE cURus UKCA		DC	Photovoltaic Inverter	Single Stage	400 A	Chassis Mount	Terminal Post
TE Connectivity AMP Connectors FN2211-600-99-C30-R55	100 °C	-40 °C	DC	CE cURus		DC	Inverters Power Drive Systems	Single Stage	600 A	Chassis Mount	Terminal Post	1000 V
TE Connectivity AMP Connectors FN2211-2300-99-C30-R55	100 °C	-40 °C	DC	CE cURus		DC	Inverters Power Drive Systems	Single Stage	2.3 kA	Chassis Mount	Terminal Post	1000 V
TE Connectivity AMP Connectors FN2211-1500-99-C23-R99	100 °C	-40 °C	DC	CE cURus UKCA	Wye	Three Phase	Photovoltaic Inverter	Single Stage	1500 A	Chassis Mount	Terminal Post
TE Connectivity AMP Connectors FN2211-1000-99-C30-R55	100 °C	-40 °C	DC	CE cURus		DC	Inverters Power Drive Systems	Single Stage	1000 A	Chassis Mount	Terminal Post	1000 V
TE Connectivity AMP Connectors FN2211-400-99-C30-R55	100 °C	-40 °C	DC	CE cURus		DC	Inverters Power Drive Systems	Single Stage	400 A	Chassis Mount	Terminal Post	1000 V
