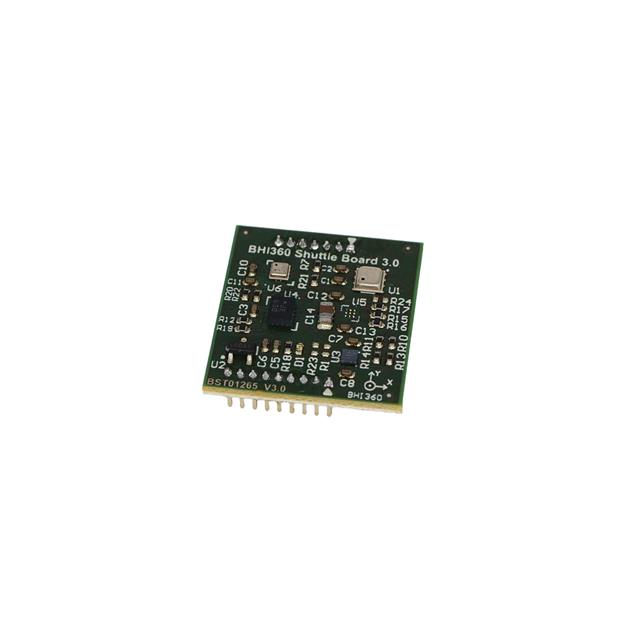

SHUTTLE BOARD 3.0 BHI360

Active

Bosch Sensortec

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SHUTTLE BOARD 3.0 BHI360

Active

Bosch Sensortec

SHUTTLE BOARD 3.0 BHI360

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SHUTTLE BOARD 3.0 BHI360	BHI360 Series

Contents	Board(s)	Board(s)
Function	Air Quality, Accelerometer, Gyroscope, Pressure, Magnetometer, Temperature, Humidity	Air Quality, Accelerometer, Gyroscope, Pressure, Magnetometer, Temperature, Humidity
Interconnect System	Shuttle Board 3.0 Socket	Shuttle Board 3.0 Socket
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Package / Case	-	20-VFLGA
Sensor Type	-	Accelerometer, Gyroscope, 6 Axis
Supplier Device Package	-	20-LGA (2.5x3)
Type	Sensor	Sensor
Utilized IC / Part	BMP580, BMM350, BME688, BHI360, BMM150	BMP580, BMM350, BME688, BHI360, BMM150

BHI360 Series

SHUTTLE BOARD 3.0 BHI360

Part	Type	Interconnect System	Contents	Utilized IC / Part	Function	Package / Case	Output Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Mounting Type
Bosch Sensortec SHUTTLE BOARD 3.0 BHI360	Sensor	Shuttle Board 3.0 Socket	Board(s)	BHI360, BME688, BMM150, BMM350, BMP580	Accelerometer, Air Quality, Gyroscope, Humidity, Magnetometer, Pressure, Temperature
Bosch Sensortec BHI360						20-VFLGA	I2C, SPI	20-LGA (2.5x3)	85 °C	-40 °C	6 Axis, Accelerometer, Gyroscope	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.13

Description

General part information

BHI360 Series

BHI360, BME688, BMM150, BMM350, BMP580 Accelerometer, Air Quality, Gyroscope, Humidity, Magnetometer, Pressure, Temperature Sensor Platform Evaluation Expansion Board

Documents

Technical documentation and resources
