PI4ULS3V4857GEAEX
Active6-BIT BI-DIRECTIONAL LEVEL SHIFTER FOR SD 3.0-SDR104 COMPLIANT MEMORY CARD APPLICATION
Deep-Dive with AI
Search across all available documentation for this part.
PI4ULS3V4857GEAEX
Active6-BIT BI-DIRECTIONAL LEVEL SHIFTER FOR SD 3.0-SDR104 COMPLIANT MEMORY CARD APPLICATION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI4ULS3V4857GEAEX |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 1 |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |

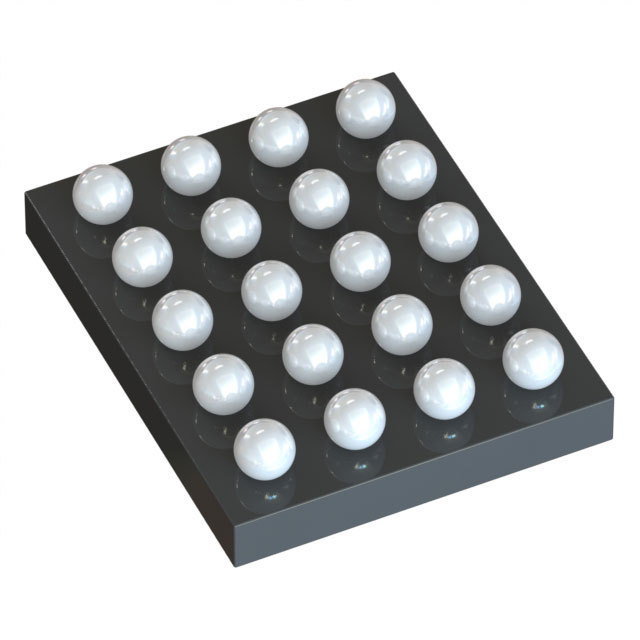

| Package / Case | 20-WLCSP |
| Supplier Device Package | 20-WLCSP |
| Supplier Device Package [x] | 2.1 |
| Supplier Device Package [y] | 1.7 |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 2 V |
| Voltage - VCCA [Min] | 1.1 V |
| Voltage - VCCB [Max] | 2 V |
| Voltage - VCCB [Min] | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.17 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| Digi-Reel® | 1 | $ 1.17 | ||
| 10 | $ 1.04 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| Tape & Reel (TR) | 3000 | $ 0.52 | ||
| 6000 | $ 0.49 | |||
| 9000 | $ 0.47 | |||
| 15000 | $ 0.45 | |||
| 21000 | $ 0.44 | |||
Description
General part information
PI4ULS3V4857 Series
The device is an SD 3.0-compliant bidirectional dual voltage level translator without direction pin control. It can translate the memory card voltage to 1.8V or 3.0V signal levels from 1.2V to 1.8V of host side and supports SD 3.0 SDR104(208Mhz), SDR50(100Mhz), DDR50(50Mhz), SDR25(50Mhz), SDR12(25Mhz) and SD 2.0High-Speed (50 MHz) and Default-Speed (25 MHz) modes. To supply the memory card I/Os, the device has an integrated voltage selectable regulator and an auto-enable/disable function that connects to the VSD supply pin. The device also has built-in EMI filters and ESD protections.
