ABS1612519

Active

Panasonic Electric Works

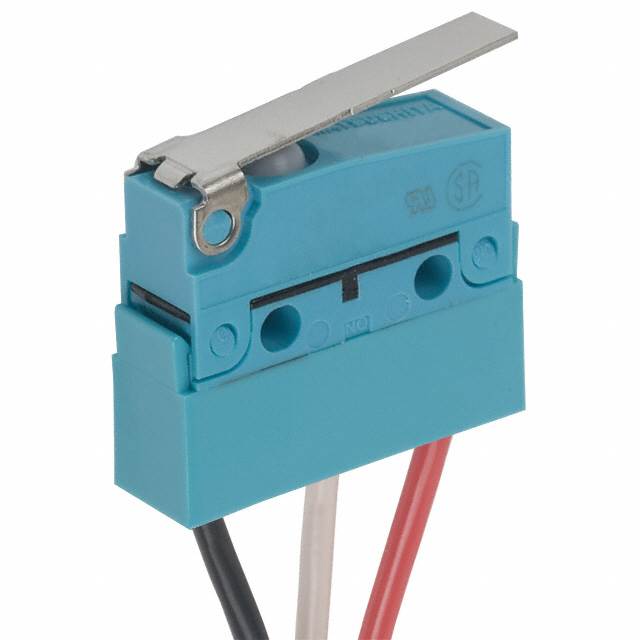

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes ABS Type Catalog

ABS1612519

Active

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes ABS Type Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 8.74

Description

General part information

ABS161 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

How to Read Date Codes

ABS Type Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABS1612519	ABS161 Series

Actuator Type	Lever, Straight	Roller, Lever, Round (Pin Plunger), Lever, Straight, Simulated Roller
Circuit	SPDT	SPDT
Current Rating (Amps)	100 mA	2 - 100 A
Differential Travel	0.8 mm	0.1 - 1 mm
Differential Travel	0.031 "	0.004 - 0.04 in
Electrical Life	200000 Cycles	50000 - 200000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	5000000 Cycles	5000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	55 gf	40 - 150 gf
Operating Position	8.8 mm	8.4 - 11.7 mm
Operating Position	0.345 in	0.33 - 0.46 in
Operating Position	-	0.571 in
Operating Position	-	14.5 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	1.2 mm	0.4 - 1.6 mm
Overtravel	0.047 "	0.015 - 0.062 in
Pretravel	0.11 in	0.024 - 0.138 in
Pretravel	2.8 mm	0.6 - 3.5 mm
Release Force	3.5 gf	2.5 - 20 gf
Switch Function	On-Mom	On-Mom
Termination Style	Wire Leads	Wire Leads
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

ABS161 Series

SWITCH SNAP ACTION SPDT 2A 125V

Part	Overtravel	Overtravel	Pretravel	Pretravel	Release Force	Mounting Type	Mechanical Life	Circuit	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Current Rating (Amps)	Differential Travel	Differential Travel	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Electrical Life	Operating Force	Actuator Type	Operating Position [custom]	Operating Position [custom]	Operating Position	Operating Position
Panasonic Electric Works ABS161640	0.032 in	0.81 mm	0.1 in	2.5 mm	3.5 gf	Chassis Mount	5000000 Cycles	SPDT	On-Mom	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	2 A	0.5 mm	0.02 in	30 V	125 V	Wire Leads	50000 Cycles	40 gf	Lever, Roller	0.571 in	14.5 mm
Panasonic Electric Works ABS1610509	0.015 "	0.4 mm	0.024 in	0.6 mm	20 gf	Chassis Mount	5000000 Cycles	SPDT	On-Mom	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	2 A	0.1 mm	0.004 in	30 V	125 V	Wire Leads	50000 Cycles	150 gf	Round (Pin Plunger)			8.4 mm	0.33 in
Panasonic Electric Works ABS1612519	0.047 "	1.2 mm	0.11 in	2.8 mm	3.5 gf	Chassis Mount	5000000 Cycles	SPDT	On-Mom	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	100 mA	0.8 mm	0.031 "	30 V	125 V	Wire Leads	200000 Cycles	55 gf	Lever, Straight			8.8 mm	0.345 in
Panasonic Electric Works ABS1613409	0.062 in	1.6 mm	0.138 in	3.5 mm	2.5 gf	Chassis Mount	5000000 Cycles	SPDT	On-Mom	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	2 A	1 mm	0.04 in	30 V	125 V	Wire Leads	50000 Cycles		Lever, Straight			8.8 mm	0.345 in
Panasonic Electric Works ABS1610519	0.015 "	0.4 mm	0.024 in	0.6 mm	20 gf	Chassis Mount	5000000 Cycles	SPDT	On-Mom	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	100 mA	0.1 mm	0.004 in	30 V	125 V	Wire Leads	200000 Cycles	150 gf	Round (Pin Plunger)			8.4 mm	0.33 in
Panasonic Electric Works ABS1616419	0.032 in	0.81 mm	0.1 in	2.5 mm	3.5 gf	Chassis Mount	5000000 Cycles	SPDT	On-Mom	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	100 mA	0.5 mm	0.02 in	30 V	125 V	Wire Leads	200000 Cycles	40 gf	Lever, Roller	0.571 in	14.5 mm
Panasonic Electric Works ABS1614509	0.047 "	1.2 mm	0.11 in	2.8 mm	3.5 gf	Chassis Mount	5000000 Cycles	SPDT	On-Mom	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	2 A	0.8 mm	0.031 "	30 V	125 V	Wire Leads	50000 Cycles	55 gf	Lever, Simulated Roller			11.7 mm	0.46 in
Panasonic Electric Works ABS1613419	0.062 in	1.6 mm	0.138 in	3.5 mm	2.5 gf	Chassis Mount	5000000 Cycles	SPDT	On-Mom	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	100 mA	1 mm	0.04 in	30 V	125 V	Wire Leads	200000 Cycles		Lever, Straight			8.8 mm	0.345 in
Panasonic Electric Works ABS1613509	0.062 in	1.6 mm	0.138 in	3.5 mm	3.059 gf	Chassis Mount	5000000 Cycles	SPDT	On-Mom	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	2 A	1 mm	0.04 in	30 V	125 V	Wire Leads	50000 Cycles		Lever, Straight			8.8 mm	0.345 in
