3-282836-1
ActiveTE Connectivity AMP Connectors

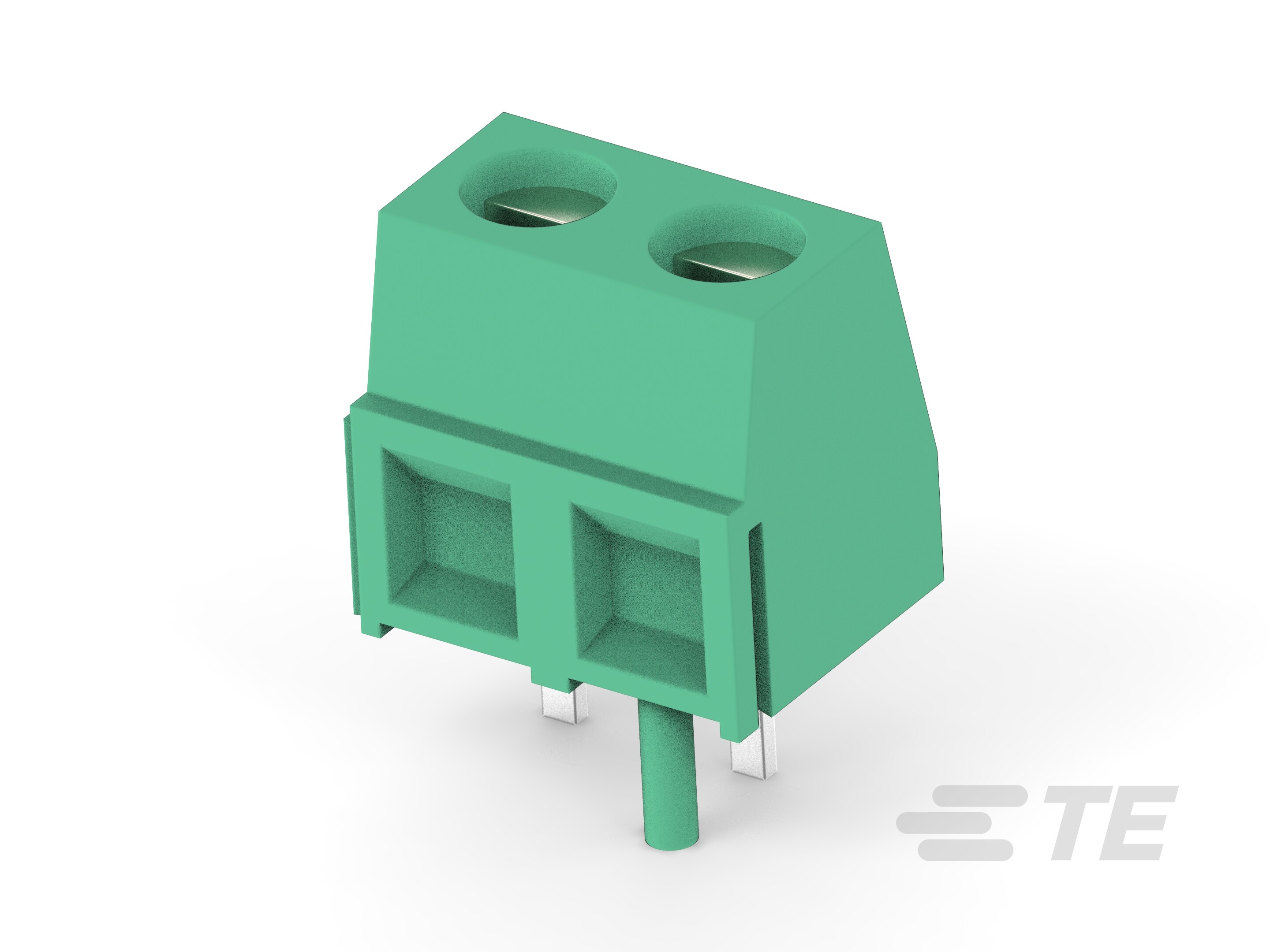

TERM BLK 2POS SIDE ENTRY 5MM PCB
3-282836-1
ActiveTE Connectivity AMP Connectors
TERM BLK 2POS SIDE ENTRY 5MM PCB
Description
General part information
3-282836-1
2 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 16 AWG, .05 – 1.3 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-282836-1 |
|---|---|
| Color | Green |
| Current | 13.5 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 2 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
