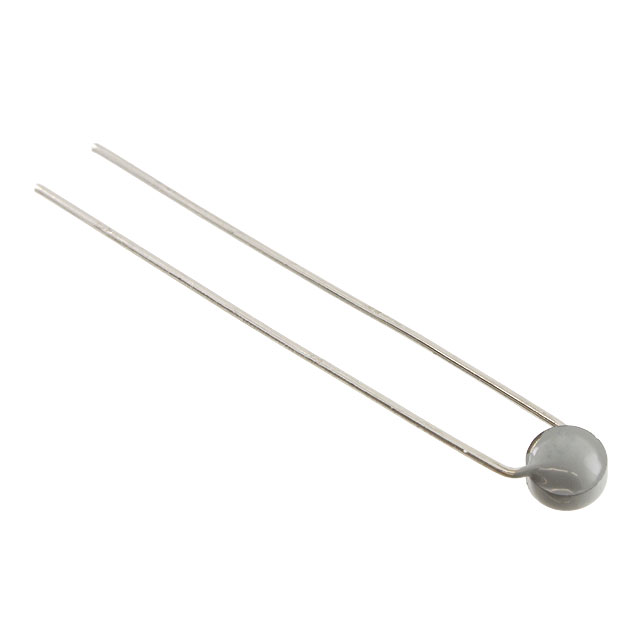

B57164K0471K052
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 470OHM 3200K DISC
B57164K0471K052
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 470OHM 3200K DISC
Description
General part information
B57164K0471K052
NTC Thermistor 470 Disc, 5.5mm Dia x 5.0mm W
Technical Specifications
Parameters and characteristics for this part
| Specification | B57164K0471K052 |
|---|---|
| B Value Tolerance | 3 % |
| Beta (B25/100) | 3200 K |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Diameter | 5.5 mm |
| Package Name | Disc |
| Package Width | 5 mm |
| Power - Max | 450 mW |
| Resistance (Ohms) | 470 Ohm |
| Resistance Tolerance (%) | 10 % |
