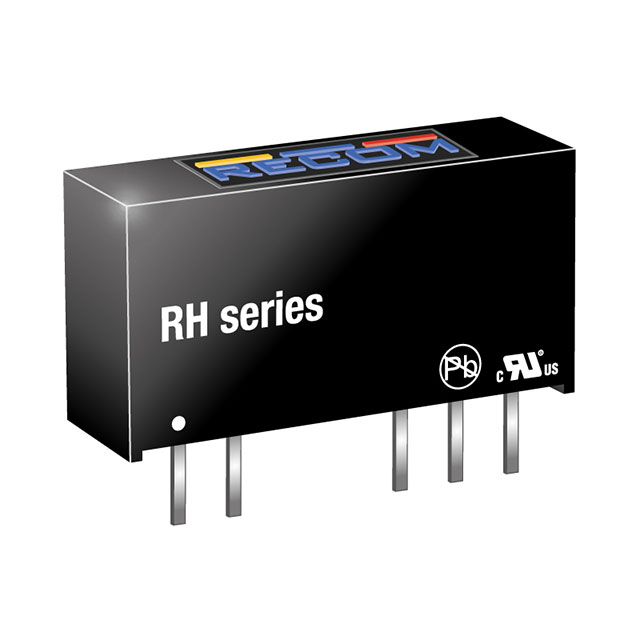

Specification	RH-2409D/H

Applications	ITE (Commercial), Medical
Current - Output (Max)	56 mA
Efficiency	79 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Package Leads	5 Leads
Package Name	7-SIP
Power (Watts)	1 W
Size / Dimension Height	0.4 in
Size / Dimension Length	0.77 in
Size / Dimension Width	0.28 in
Type	Isolated Module
Voltage - Input (Max)	26.4 V
Voltage - Input (Min)	21.6 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	9 V
Voltage - Output 2	-9 V

RH Series

...

Part	Voltage - Output 2	Current - Output (Max)	Mounting Type	Voltage - Input (Max)	Package Leads	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Min)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Power (Watts)	Voltage - Output 1	Number of Outputs	Efficiency	Voltage - Isolation	Applications	Features	Type	Current - Output (Max) Options
Recom Power RH-1212D/HP	-12 V	42 mA	Through Hole	13.2 V	5 Leads	7-SIP	90 °C	-40 °C	10.8 V	0.4 in	0.77 in	0.28 in	1 W	12 V	2	84 %	4000 Vpk	ITE (Commercial) Medical	SCP	Isolated Module
Recom Power RH-1205D/HP	-5 V		Through Hole	13.2 V	5 Leads	7-SIP	90 °C	-40 °C	10.8 V	0.4 in	0.77 in	0.28 in	1 W	5 V	2	78 %	4000 Vpk	ITE (Commercial) Medical	SCP	Isolated Module	100mA
Recom Power RH-2405D/HP	-5 V		Through Hole	26.4 V	5 Leads	7-SIP	90 °C	-40 °C	21.6 V	0.4 in	0.77 in	0.28 in	1 W	5 V	2	78 %	4000 Vpk	ITE (Commercial) Medical	SCP	Isolated Module	100mA
Recom Power RH-2412D/P	-12 V	42 mA	Through Hole	26.4 V	5 Leads	7-SIP	90 °C	-40 °C	21.6 V	0.4 in	0.77 in	0.24 in	1 W	12 V	2	84 %	3 kV	ITE (Commercial) Medical	SCP	Isolated Module
Recom Power RH-0515D	-15 V	33 mA	Through Hole	5.5 V	5 Leads	7-SIP	90 °C	-40 °C	4.5 V	0.4 in	0.77 in	0.24 in	1 W	15 V	2	84 %	3 kV	ITE (Commercial) Medical		Isolated Module
Recom Power RH-241509D/P	-9 V		Through Hole	26.4 V	5 Leads	7-SIP	90 °C	-40 °C	21.6 V	0.4 in	0.77 in	0.24 in	1 W	15 V	2	84 %	3 kV	ITE (Commercial)	SCP	Isolated Module	33mA 56mA
Recom Power RH-1505D/P	-5 V		Through Hole	16.5 V	5 Leads	7-SIP	90 °C	-40 °C	13.5 V	0.4 in	0.77 in	0.24 in	1 W	5 V	2	78 %	3 kV	ITE (Commercial) Medical	SCP	Isolated Module	100mA
Recom Power RH-0512D/HP	-12 V	42 mA	Through Hole	5.5 V	5 Leads	7-SIP	90 °C	-40 °C	4.5 V	0.4 in	0.77 in	0.28 in	1 W	12 V	2	84 %	4000 Vpk	ITE (Commercial) Medical	SCP	Isolated Module
Recom Power RH-1505D	-5 V		Through Hole	16.5 V	5 Leads	7-SIP	90 °C	-40 °C	13.5 V	0.4 in	0.77 in	0.24 in	1 W	5 V	2	78 %	3 kV	ITE (Commercial) Medical		Isolated Module	100mA
Recom Power RH-0509D	-9 V	56 mA	Through Hole	5.5 V	5 Leads	7-SIP	90 °C	-40 °C	4.5 V	0.4 in	0.77 in	0.24 in	1 W	9 V	2	79 %	3 kV	ITE (Commercial) Medical		Isolated Module
