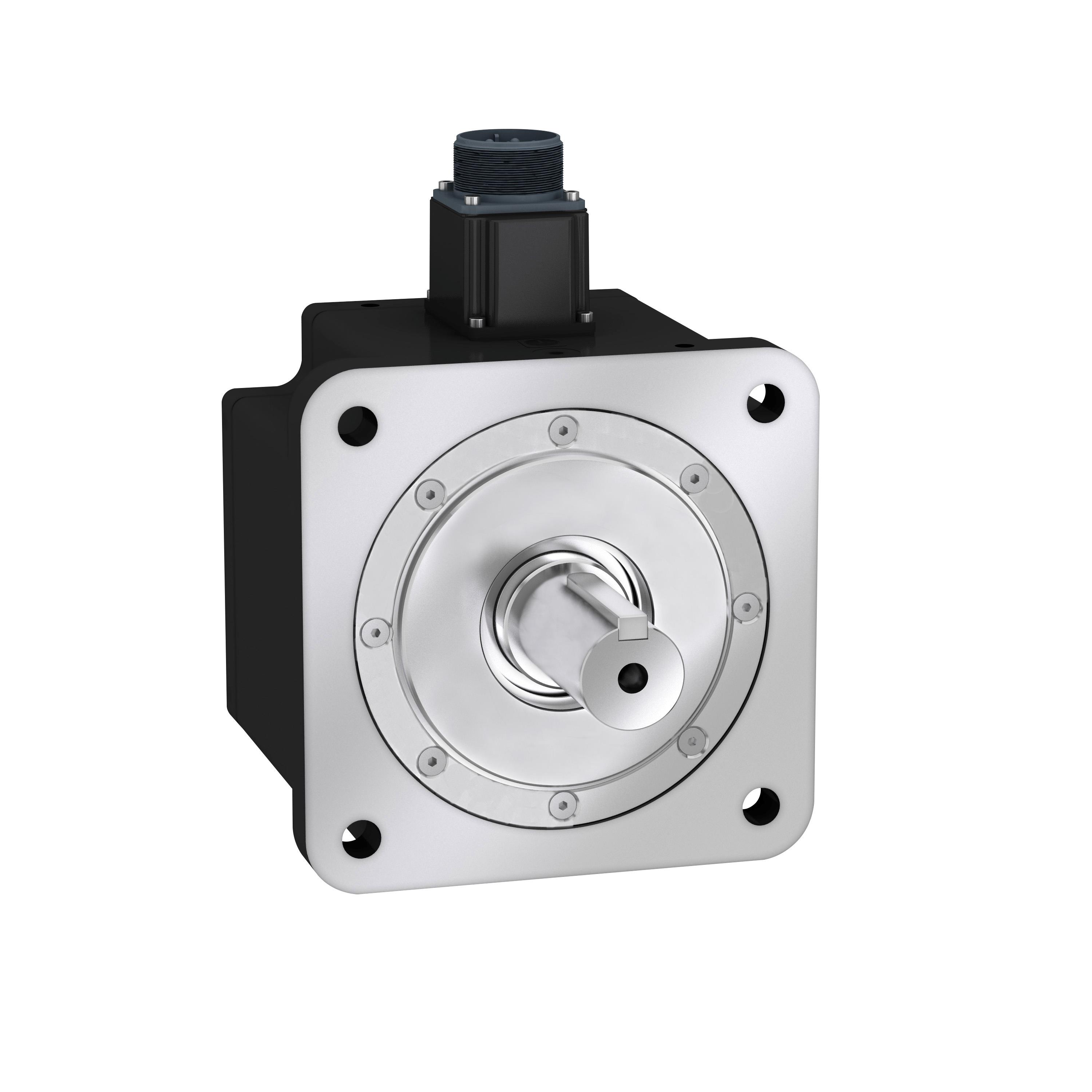

BCH2MR2022CA6C
ActiveSCHNEIDER ELECTRIC
180MM, 2KW, IP65, WO KEY, MIL CO
BCH2MR2022CA6C
ActiveSCHNEIDER ELECTRIC
180MM, 2KW, IP65, WO KEY, MIL CO
Description
General part information
BCH2MR2022CA6C
AC Motor Servomotor 3000 RPM 2kW Absolute 220VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BCH2MR2022CA6C |
|---|---|
| Diameter - Shaft | 1.378 in |
| Encoder Type | Absolute |
| Features | Oil Seal |
| Function | Servomotor |
| Length - Shaft and Bearing | 3.11 in |
| Mounting Hole Spacing | 4.5 in |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -20 °C |
| Power - Rated | 2 kW |
| RPM | 3000 RPM |
| Size / Dimension Length | 7.087 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 7.087 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 9550 mNm |
| Torque - Rated (oz-in) | 1352 oz-in |
| Type | AC Motor |
| Voltage - Rated | 220 VAC |
