ZB4BW7A3741
ActiveSCHNEIDER ELECTRIC
CONFIG SW BODY PUSHBUTTON ILLUM
ZB4BW7A3741
ActiveSCHNEIDER ELECTRIC
CONFIG SW BODY PUSHBUTTON ILLUM
Description
General part information
ZB4BW7A3741

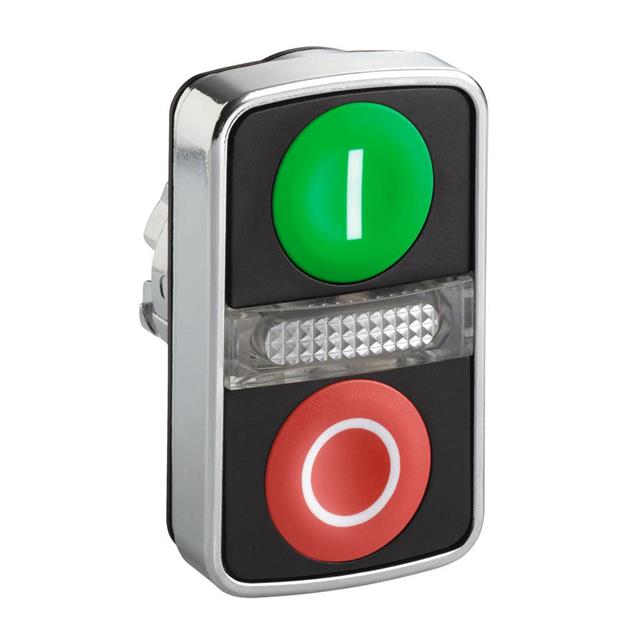

Configurable Switch Body Pushbutton, Rectangular (Dual) Illuminated - Red/Green
Technical Specifications
Parameters and characteristics for this part
| Specification | ZB4BW7A3741 |
|---|---|
| Actuator Type | Pushbutton, Rectangular (Dual) |
| Compatible Series | Schneider, Harmony XB4 |
| Illumination | Green, Red |
| Panel Cutout Dimension | 22 mm |
| Panel Cutout Shape | Round |
| Requires | Illumination Source, Contact Block(s) |
| Type | Momentary |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
