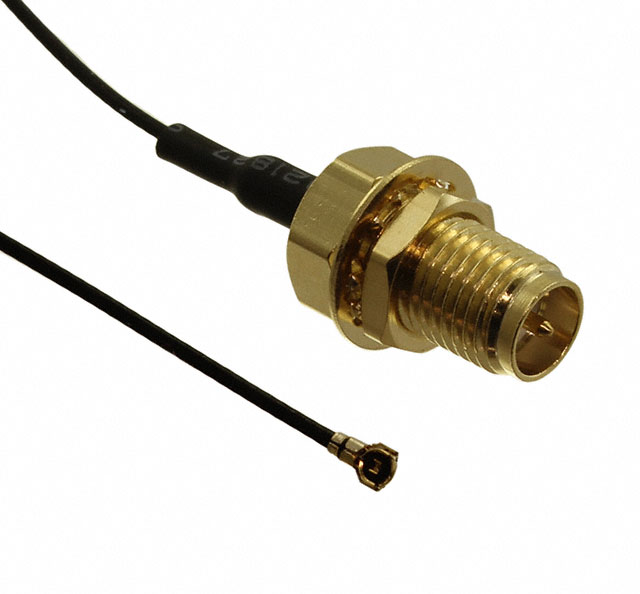

Specification	CA-DKCA1-305LQ-ALI5

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Front Side Nut, Bulkhead
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	IPEX MHF4 Plug, Right Angle, I-PEX MHF4 Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Outer Diameter	0.81 mm
Cable Type	Coaxial Cable, 0.81mm OD Coaxial Cable, OD Coaxial Cable
Cable Type Size	0.81 mm
Color	Black
Frequency - Max	6000 MHz
Length	12 in
Overall Impedance	50 Ohms
Style	RP-SMA to IPEX MHF4, RP-SMA to I-PEX MHF4

CA-DKCA1 Series

Part	1st Connector	1st Contact Gender	Style	2nd Contact Gender	1st Connector Mounting Feature	Cable Impedance	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Connector	Cable Type	Frequency - Max	Color	Overall Impedance	Length	Cable Type Size	Cable Outer Diameter	Connector Impedance
Adam Tech CA-DKCA1-305L5-APAJ	SMA Jack	Female	SMA	Male	Bulkhead Front Side Nut	50 Ohms	Panel Mount	Free Hanging (In-Line)	SMA Plug	316 RG	6000 MHz	Copper	50 Ohms	12 in
Adam Tech CA-DKCA1-50LQ-I0I0	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	Female	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	Female			Free Hanging (In-Line)	Free Hanging (In-Line)	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	6000 MHz	Black	50 Ohms	1.969 in	0.81 mm	0.81 mm
Adam Tech CA-DKCA1-100L1-I0I0	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	Female	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	Female			Free Hanging (In-Line)	Free Hanging (In-Line)	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	Coaxial Cable OD Coaxial Cable	6000 MHz	Black	50 Ohms	3.937 in	1.37	1.37 mm
Adam Tech CA-DKCA1-200L1-I0I0	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	Female	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	Female			Free Hanging (In-Line)	Free Hanging (In-Line)	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	Coaxial Cable OD Coaxial Cable	6000 MHz	Black	50 Ohms	7.874 in	1.37	1.37 mm
Adam Tech CA-DKCA1-305L1-ALI0	RP-SMA Jack	Male	I-PEX MHF1 to RP-SMA IPEX MHF1 to RP-SMA U.FL (UMCC)	Female	Bulkhead Front Side Nut		Panel Mount	Free Hanging (In-Line)	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	Coaxial Cable OD Coaxial Cable	6000 MHz	Black	50 Ohms	12 in	1.37	1.37 mm
Adam Tech CA-DKCA1-153L5-EPREPR	MMCX Plug Right Angle	Male	MMCX	Male		50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	MMCX Plug Right Angle	316 RG	6000 MHz	Copper	50 Ohms	6.024 in
Adam Tech CA-DKCA1-152L1-ALI0	RP-SMA Jack	Male	I-PEX MHF1 to RP-SMA U.FL (UMCC)	Female	Bulkhead Front Side Nut		Panel Mount	Free Hanging (In-Line)	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Coaxial Cable OD Coaxial Cable	6000 MHz	Black	50 Ohms	5.984 in	1.37	1.37 mm
Adam Tech CA-DKCA1-153L3-EPEP	MMCX Plug	Male	MMCX	Male		50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	MMCX Plug	178 RG	6000 MHz	Copper	50 Ohms	6.024 in
Adam Tech CA-DKCA1-152L5-EPR-HSBL-12	MMCX Plug Right Angle	Male	Cable MMCX			50 Ohms	Free Hanging (In-Line)		Cable (Round)	316 RG		Black	50 Ohms	12 in			50 Ohms
Adam Tech CA-DKCA1-152L3-DPDRP-6	MCX Plug	Male	MCX	Male		50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX Plug Right Angle	178 RG	6000 MHz	Brown	50 Ohms	5.984 in
