100023736
ActiveTelegartner Inc
TNC PLG STR CR/CR G7
100023736
ActiveTelegartner Inc
TNC PLG STR CR/CR G7
Description
General part information
100023736

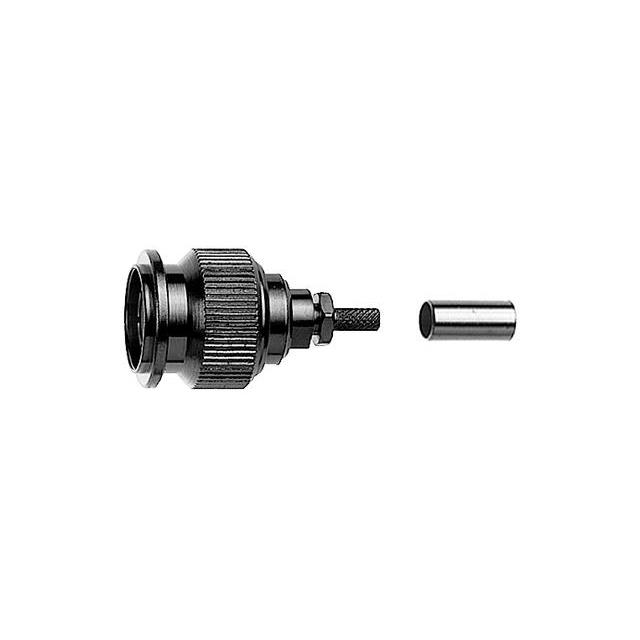

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023736 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-174, 316, 188 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
