Description
General part information

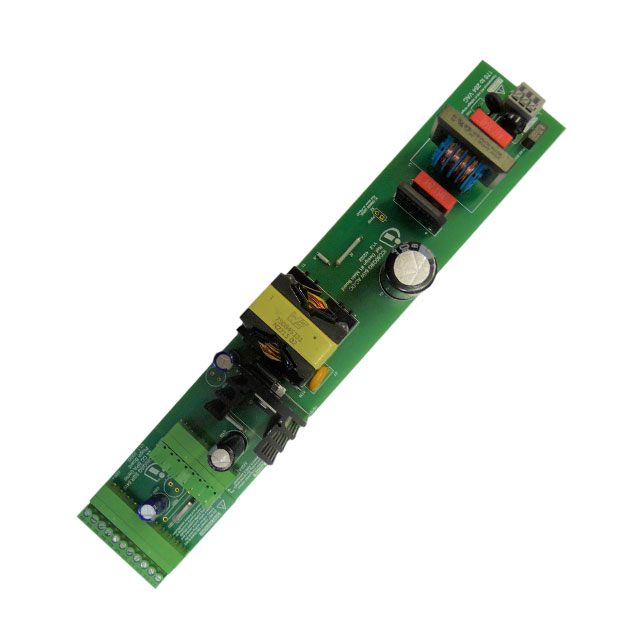

REFICC80QSG84W3BPATOBO1
This AC-DC reference design is a flyback converter with secondary-side regulated (SSR) and constant current (CC) output. The input voltage range can be set to low-line by a jumper wire.The output load ranges from 11 V to 21 V and it is intended to be used for 9 V to 18 V battery charging.
Technical Specifications
Parameters and characteristics for this part
| Specification | REFICC80QSG84W3BPATOBO1 |
|---|---|
| Contents | Board |
| Embedded | No |
| Function | Battery Charger |
| Primary Attributes - Input Voltage (Max) | 230 VAC |
| Primary Attributes - Input Voltage (Min) | 110 VAC |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | ICC80QSG, IPN70R450P7S |
