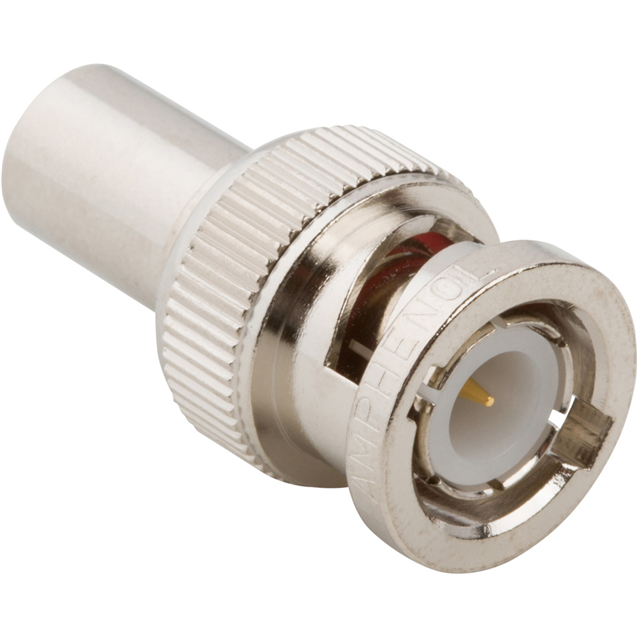

Specification	202108

Body Finish	Nickel
Body Material	Brass
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	93 Ohms
Mounting Type	Cap, Free Hanging

BNC Series

Part	Connector Style	Frequency - Max	Contact Termination	Housing Color	Connector Type	Center Contact Material	Mounting Type	Number of Ports	Impedance	Cable Group	Fastening Type	Shield Termination	Voltage Rating	Includes Total Count	Includes	Mating Cycles	Dielectric Material	Insertion Loss	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Center Contact Plating	Body Material	Features	Mounting Feature	Style	1st Connector Mounting Type	Length	Cable Impedance	1st Contact Gender	Color	2nd Connector	2nd Contact Gender	1st Connector	Cable Type	2nd Connector Mounting Type	Overall Impedance
McGill Microwave Systems 031-70553-12G	BNC	12 Gbps	Crimp	Silver	Female Socket Jack	Phosphor Bronze	Free Hanging (In-Line)	1	75 Ohm	Canare L-5.5CUHD	Bayonet Lock	Crimp
McGill Microwave Systems 031-321-10RFX	BNC	4 GHz	Crimp	Silver	Male Pin Plug	Brass	Free Hanging (In-Line)	1	50 Ohm	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Bayonet Lock	Crimp	500 V	3 pcs	Connector Contact Ferrule	500 cycles	Polyoxymethylene (POM) Acetal	0.2 dB	-65 °C	165 °C	Nickel	Gold	Brass
McGill Microwave Systems 112127	BNC	4 GHz	Crimp	Silver	Male Pin Plug	Brass	Free Hanging (In-Line)	1	75 Ohm	82259 88241 89259 9259 Belden 1560A RG-59 Plenum	Bayonet Lock	Crimp	500 V	3 pcs	Connector Contact Ferrule	500 cycles	Polyoxymethylene (POM) Acetal		-55 °C	85 °C	Nickel	Gold	Brass
McGill Microwave Systems 034-5022	BNC HD	6000 MHz	Solder	Silver	Female Socket Recepture	Beryllium Copper	Through Hole	1	50 Ohm		Bayonet Lock	Solder				500 cycles	Polytetrafluoroethylene (PTFE)		-65 °C	165 °C	Nickel	Gold	Brass
McGill Microwave Systems 112627	BNC	4 GHz	Crimp	Silver	Male Pin Plug	Brass	Free Hanging (In-Line)	1	50 Ohm	213 214 225 302 393 87 8A 9 9A 9B RG-8	Bayonet Lock	Crimp
McGill Microwave Systems 031-4890-1	BNC	4 GHz	Solder Cup	Silver White	Female Socket Jack	Beryllium Copper	Panel Mount	1	50 Ohm		Bayonet Lock	Solder	500 V	3 pcs	Connector Lockwasher Nut	500 cycles	Polytetrafluoroethylene (PTFE)	0.2 dB	-65 °C	165 °C	Silver	Silver	Brass	Isolated	Bulkhead Rear Side Nut
McGill Microwave Systems CO-058BNCX200-001		4 GHz																	-40 °C	85 °C				Shielded		BNC	Free Hanging (In-Line)	12 in	50 Ohms	Male	Black	BNC Plug	Male	BNC Plug	58 RG	Free Hanging (In-Line)
McGill Microwave Systems 095-850-186-048		12 Gbps																						Shielded		BNC	Free Hanging (In-Line)	48 in		Male	Black	BNC Plug	Male	BNC Plug	Belden 4794R	Free Hanging (In-Line)	75 Ohms
McGill Microwave Systems 031-6071	BNC	500 MHz	Solder	Silver	Female Socket Jack	Phosphor Bronze	Panel Mount Right Angle Through Hole	2	75 Ohm		Bayonet Lock	Solder												Board Lock	Bulkhead Front Side Nut
McGill Microwave Systems 112950	BNC	4 GHz	Crimp	Silver	Male Pin Plug	Brass	Free Hanging (In-Line)	1	75 Ohm	735A AT&T 735 Belden 735A1	Bayonet Lock	Crimp	500 V	3 pcs	Connector Contact Ferrule	500 cycles	Polytetrafluoroethylene (PTFE)				Nickel	Gold	Brass
