LC1D18M7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, LC1D, 18 A, DIN RAIL, 690 VAC, 3PST-NO, 3 POLE, 15 HP
LC1D18M7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, LC1D, 18 A, DIN RAIL, 690 VAC, 3PST-NO, 3 POLE, 15 HP
Description
General part information
LC1D18M7

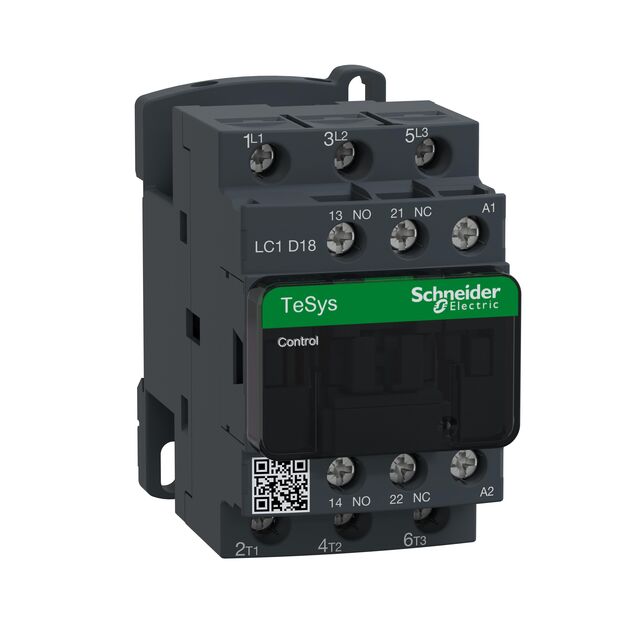

The LC1D18M7 is a 3-pole Contactor with safety cover suitable for resistive load motor control applications. It offers 3000m Operating altitude without derating in temperature.
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D18M7 |
|---|---|
| Coil Voltage | 220 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 18 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 187 VAC |
| Must Release Voltage | 66 VAC |
| Operate Time | 22 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
